112509

Amphenol RF

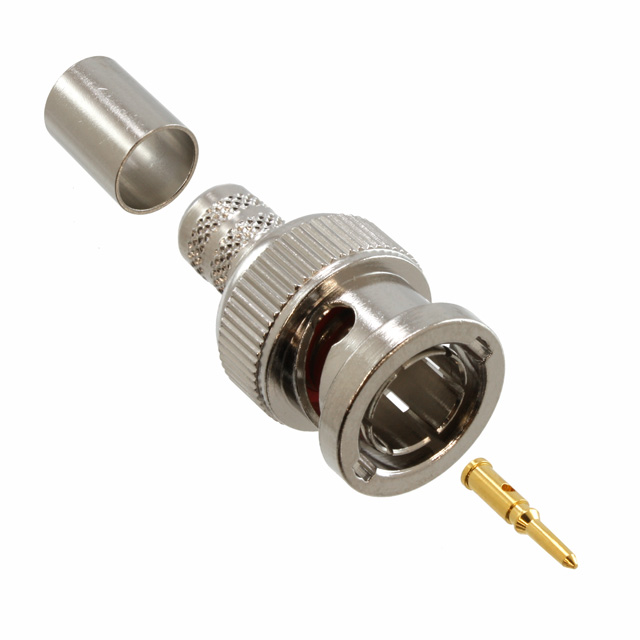

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

112509

Amphenol RF

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112509

Body Finish	Nickel
Body Material	Brass
Cable Group	9278, Belden 1426A, RG-59, 8281, 9100, 1505A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1125 Series

Part	Center Contact Material	Contact Termination	Number of Ports	Impedance	Cable Group	Mating Cycles	Includes	Mounting Type	Housing Color	Voltage Rating	Connector Type	Dielectric Material	Body Material	Shield Termination	Connector Style	Body Finish	Frequency - Max [Max]	Center Contact Plating	Fastening Type	Insertion Loss	Ingress Protection	Cable Group	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 112540	Brass	Crimp	1	75 Ohms	143 212 54 6A 89248 9290 Belden 1152A RG-6	500	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	Silver	500 V	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Brass	Crimp	BNC	Nickel	4 GHz	Gold	Bayonet Lock
Amphenol RF 112591	Phosphor Bronze	Solder	1	50 Ohms		500		Through Hole	Silver	500 V	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Brass	Solder	BNC	Nickel	4 GHz	Gold	Bayonet Lock	0.2 dB	Waterproof
Amphenol RF 112551	Brass	Solder	1	50 Ohms		500	Connector Contact Insulator	Free Hanging (In-Line)	Gold Silver	500 V	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Brass	Solder	BNC	Gold Nickel	4 GHz	Gold	Bayonet Lock	0.2 dB
Amphenol RF 112594	Brass	Solder	1	50 Ohms	213 214 225 302 393 87 8A 9 9A 9B RG-8	500	1 Connector 1 End Cap 1 Ferrule	Free Hanging (In-Line) Right Angle	Silver	500 V	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Brass	Crimp	BNC	Nickel	4 GHz	Gold	Bayonet Lock	0.2 dB
Amphenol RF 112513	Phosphor Bronze	Crimp	1	50 Ohms	RG-55	500	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	Silver	500 V	Female Socket Jack	Polyoxymethylene (POM) Acetal	Brass	Crimp	BNC	Nickel	4 GHz	Gold	Bayonet Lock	0.2 dB		142 223 400
Amphenol RF 112507	Brass	Crimp	1	75 Ohms	1505A 8281 9100 9278 Belden 1426A RG-59	500	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	Silver	500 V	Male Pin Plug	Polyoxymethylene (POM) Acetal	Brass	Crimp	BNC	Nickel	4 GHz	Gold	Bayonet Lock
Amphenol RF 112522	Phosphor Bronze	Crimp	1	50 Ohms	178A 178B 196 196A M17/93-RG178 RG-178	500	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut		Silver	500 V	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Brass	Crimp	BNC	Nickel	4 GHz	Gold	Bayonet Lock	0.2 dB			Bulkhead - Front Side Nut
Amphenol RF 112530	Phosphor Bronze	Crimp	1	50 Ohms	188A 316 RG-174	500	1 Connector 1 Contact 1 Ferrule 1 Sleeve		Silver	500 V	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Brass	Crimp	BNC	Nickel	1 GHz	Gold	Bayonet Lock	0.2 dB			Flange	-40 °C	155 °C
Amphenol RF 112509	Brass	Crimp	1	75 Ohms	1505A 8281 9100 9278 Belden 1426A RG-59	500	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	Silver	500 V	Male Pin Plug	Polyoxymethylene (POM) Acetal	Brass	Crimp	BNC	Nickel	4 GHz	Gold	Bayonet Lock
Amphenol RF 112556	Brass	Crimp	1	75 Ohms	Belden 573945 Mini Max	500	1 Connector 1 Contact 1 Ferrule 1 Sleeve	Free Hanging (In-Line)	Silver	500 V	Male Pin Plug	Polyoxymethylene (POM) Acetal	Brass	Crimp	BNC	Nickel	4 GHz	Gold	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 3.17
	Bulk	1	$ 22.22

Description

General part information

1125 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
