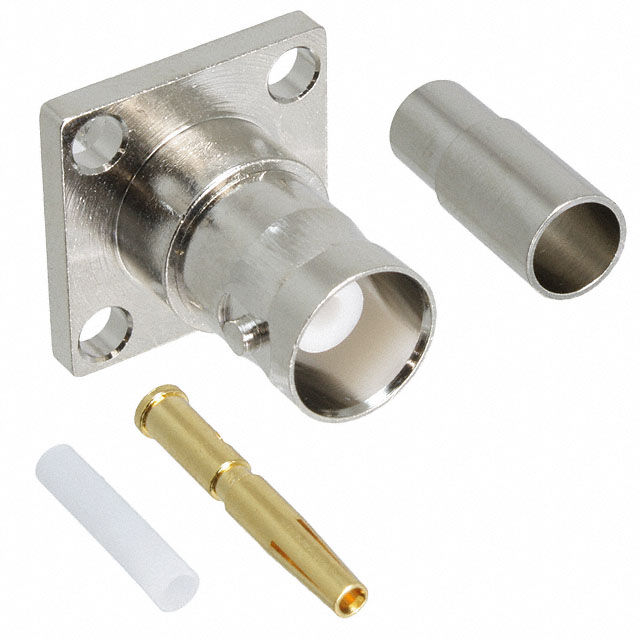

112530
ActiveAmphenol RF
CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
112530
ActiveAmphenol RF
CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 112530 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 316, 188A, RG-174 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Connector, 1 Sleeve, 1 Ferrule, 1 Contact |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
1125 Series
| Part | Center Contact Material | Contact Termination | Number of Ports | Impedance | Cable Group | Mating Cycles | Includes | Mounting Type | Housing Color | Voltage Rating | Connector Type | Dielectric Material | Body Material | Shield Termination | Connector Style | Body Finish | Frequency - Max [Max] | Center Contact Plating | Fastening Type | Insertion Loss | Ingress Protection | Cable Group | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Brass | Crimp | 1 | 75 Ohms | 143 212 54 6A 89248 9290 Belden 1152A RG-6 | 500 | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) Right Angle | Silver | 500 V | Male Pin Plug | Polytetrafluoroethylene (PTFE) | Brass | Crimp | BNC | Nickel | 4 GHz | Gold | Bayonet Lock | ||||||
Amphenol RF | Phosphor Bronze | Solder | 1 | 50 Ohms | 500 | Through Hole | Silver | 500 V | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Brass | Solder | BNC | Nickel | 4 GHz | Gold | Bayonet Lock | 0.2 dB | Waterproof | ||||||
Amphenol RF | Brass | Solder | 1 | 50 Ohms | 500 | Connector Contact Insulator | Free Hanging (In-Line) | Gold Silver | 500 V | Male Pin Plug | Polytetrafluoroethylene (PTFE) | Brass | Solder | BNC | Gold Nickel | 4 GHz | Gold | Bayonet Lock | 0.2 dB | ||||||
Amphenol RF | Brass | Solder | 1 | 50 Ohms | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | 500 | 1 Connector 1 End Cap 1 Ferrule | Free Hanging (In-Line) Right Angle | Silver | 500 V | Male Pin Plug | Polytetrafluoroethylene (PTFE) | Brass | Crimp | BNC | Nickel | 4 GHz | Gold | Bayonet Lock | 0.2 dB | |||||
Amphenol RF | Phosphor Bronze | Crimp | 1 | 50 Ohms | RG-55 | 500 | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) | Silver | 500 V | Female Socket Jack | Polyoxymethylene (POM) Acetal | Brass | Crimp | BNC | Nickel | 4 GHz | Gold | Bayonet Lock | 0.2 dB | 142 223 400 | ||||
Amphenol RF | Brass | Crimp | 1 | 75 Ohms | 1505A 8281 9100 9278 Belden 1426A RG-59 | 500 | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) | Silver | 500 V | Male Pin Plug | Polyoxymethylene (POM) Acetal | Brass | Crimp | BNC | Nickel | 4 GHz | Gold | Bayonet Lock | ||||||
Amphenol RF | Phosphor Bronze | Crimp | 1 | 50 Ohms | 178A 178B 196 196A M17/93-RG178 RG-178 | 500 | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | Silver | 500 V | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Brass | Crimp | BNC | Nickel | 4 GHz | Gold | Bayonet Lock | 0.2 dB | Bulkhead - Front Side Nut | |||||
Amphenol RF | Phosphor Bronze | Crimp | 1 | 50 Ohms | 188A 316 RG-174 | 500 | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | Silver | 500 V | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Brass | Crimp | BNC | Nickel | 1 GHz | Gold | Bayonet Lock | 0.2 dB | Flange | -40 °C | 155 °C | |||
Amphenol RF | Brass | Crimp | 1 | 75 Ohms | 1505A 8281 9100 9278 Belden 1426A RG-59 | 500 | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) | Silver | 500 V | Male Pin Plug | Polyoxymethylene (POM) Acetal | Brass | Crimp | BNC | Nickel | 4 GHz | Gold | Bayonet Lock | ||||||
Amphenol RF | Brass | Crimp | 1 | 75 Ohms | Belden 573945 Mini Max | 500 | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | Free Hanging (In-Line) | Silver | 500 V | Male Pin Plug | Polyoxymethylene (POM) Acetal | Brass | Crimp | BNC | Nickel | 4 GHz | Gold | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1125 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
