MB2511S2G13

Obsolete

NKK Switches

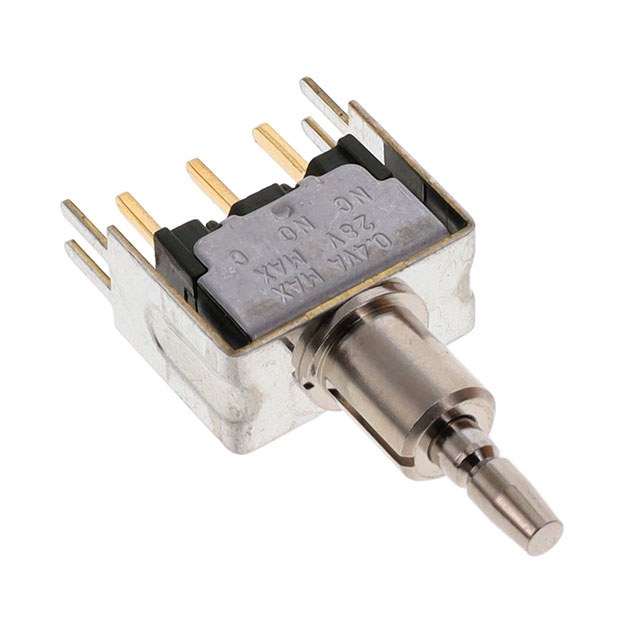

MB2500-SERIES MINIATURE PUSHBUTTON SWITCH; POLES: SPDT; CIRCUITS: ON-MOM; CURRENT RATING: 0.4VA (AC/DC); RATING (AC): 28V; RATING (DC): 28V; ACTUATOR TYPE: PLUNGER FOR CAP; MOUNTING TYPE: THROUGH HOLE; TERMINATION STYLE: PC PIN; FEATURES: EPOXY SEALED TERMINALS; RATING: 0.4; ILLUMINATION: NON-ILLUMINATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2511S2G13

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2511S2G13

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2511S Series

Part	Type	Mechanical Life	Switch Function	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Features	Electrical Life	Actuator Marking	Circuit	Voltage Rating - AC	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap
NKK Switches MB2511S2G45	Standard	200000 Cycles	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	PC Pin	Epoxy Sealed Terminals	100000 Cycles	No Marking	SPDT	28 V	Right Angle Through Hole Vertical	Plunger for Cap
NKK Switches MB2511S4G01	Standard	200000 Cycles	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	Solder Lug	Epoxy Sealed Terminals	100000 Cycles	No Marking	SPDT	28 V	Panel Mount Rear	Plunger for Cap	6.5 mm
NKK Switches MB2511S2G13	Standard	200000 Cycles	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	PC Pin	Epoxy Sealed Terminals	100000 Cycles	No Marking	SPDT	28 V	Through Hole	Plunger for Cap
NKK Switches MB2511S4G03	Standard	200000 Cycles	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	PC Pin	Epoxy Sealed Terminals	100000 Cycles	No Marking	SPDT	28 V	Panel Mount Rear	Plunger for Cap	6.5 mm
NKK Switches MB2511S4W01-BA	Standard	200000 Cycles	On-Mom	3 A	-30 ░C	85 °C		Solder Lug	Epoxy Sealed Terminals	25000 Steps	No Marking	SPDT	125 V	Panel Mount Rear	Button Round	6.5 mm	Black
NKK Switches MB2511S4G01-BC	Standard	200000 Cycles	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	Solder Lug	Epoxy Sealed Terminals	100000 Cycles	No Marking	SPDT	28 V	Panel Mount Rear	Button Round	6.5 mm	Red
NKK Switches MB2511S4W01-CB	Standard	200000 Cycles	On-Mom	3 A	-30 ░C	85 °C		Solder Lug	Epoxy Sealed Terminals	25000 Steps	No Marking	SPDT	125 V	Panel Mount Rear	Button Round	6.5 mm	White
NKK Switches MB2511S4W01	Standard	200000 Cycles	On-Mom	3 A	-30 ░C	85 °C		Solder Lug	Epoxy Sealed Terminals	25000 Steps	No Marking	SPDT	125 V	Panel Mount Rear	Plunger for Cap	6.5 mm
NKK Switches MB2511S2G13-BA	Standard	200000 Cycles	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	PC Pin	Epoxy Sealed Terminals	100000 Cycles	No Marking	SPDT	28 V	Through Hole	Button Round		Black
NKK Switches MB2511S2W13	Standard	200000 Cycles	On-Mom	3 A	-30 ░C	85 °C		PC Pin	Epoxy Sealed Terminals	25000 Steps	No Marking	SPDT	125 V	Through Hole	Plunger for Cap
