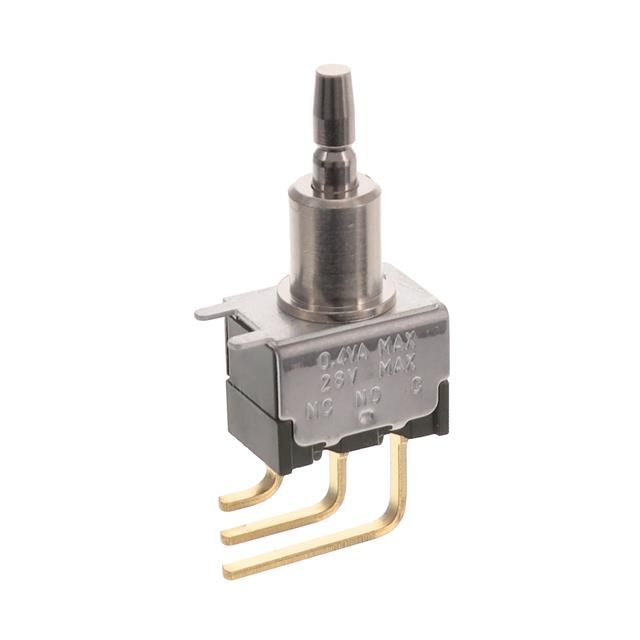

MB2511S2G45
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB2511S2G45
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB2511S2G45 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Through Hole, Vertical, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
MB2511S Series
| Part | Type | Mechanical Life | Switch Function | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Termination Style | Features | Electrical Life | Actuator Marking | Circuit | Voltage Rating - AC | Mounting Type | Actuator Type | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Standard | 200000 Cycles | On-Mom | 0.4 VA | -30 ░C | 85 °C | 28 V | PC Pin | Epoxy Sealed Terminals | 100000 Cycles | No Marking | SPDT | 28 V | Right Angle Through Hole Vertical | Plunger for Cap | ||
NKK Switches | Standard | 200000 Cycles | On-Mom | 0.4 VA | -30 ░C | 85 °C | 28 V | Solder Lug | Epoxy Sealed Terminals | 100000 Cycles | No Marking | SPDT | 28 V | Panel Mount Rear | Plunger for Cap | 6.5 mm | |
NKK Switches | Standard | 200000 Cycles | On-Mom | 0.4 VA | -30 ░C | 85 °C | 28 V | PC Pin | Epoxy Sealed Terminals | 100000 Cycles | No Marking | SPDT | 28 V | Through Hole | Plunger for Cap | ||
NKK Switches | Standard | 200000 Cycles | On-Mom | 0.4 VA | -30 ░C | 85 °C | 28 V | PC Pin | Epoxy Sealed Terminals | 100000 Cycles | No Marking | SPDT | 28 V | Panel Mount Rear | Plunger for Cap | 6.5 mm | |
NKK Switches | Standard | 200000 Cycles | On-Mom | 3 A | -30 ░C | 85 °C | Solder Lug | Epoxy Sealed Terminals | 25000 Steps | No Marking | SPDT | 125 V | Panel Mount Rear | Button Round | 6.5 mm | Black | |
NKK Switches | Standard | 200000 Cycles | On-Mom | 0.4 VA | -30 ░C | 85 °C | 28 V | Solder Lug | Epoxy Sealed Terminals | 100000 Cycles | No Marking | SPDT | 28 V | Panel Mount Rear | Button Round | 6.5 mm | Red |
NKK Switches | Standard | 200000 Cycles | On-Mom | 3 A | -30 ░C | 85 °C | Solder Lug | Epoxy Sealed Terminals | 25000 Steps | No Marking | SPDT | 125 V | Panel Mount Rear | Button Round | 6.5 mm | White | |
NKK Switches | Standard | 200000 Cycles | On-Mom | 3 A | -30 ░C | 85 °C | Solder Lug | Epoxy Sealed Terminals | 25000 Steps | No Marking | SPDT | 125 V | Panel Mount Rear | Plunger for Cap | 6.5 mm | ||
NKK Switches | Standard | 200000 Cycles | On-Mom | 0.4 VA | -30 ░C | 85 °C | 28 V | PC Pin | Epoxy Sealed Terminals | 100000 Cycles | No Marking | SPDT | 28 V | Through Hole | Button Round | Black | |
NKK Switches | Standard | 200000 Cycles | On-Mom | 3 A | -30 ░C | 85 °C | PC Pin | Epoxy Sealed Terminals | 25000 Steps | No Marking | SPDT | 125 V | Through Hole | Plunger for Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.67 | |
Description
General part information
MB2511S Series
Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
