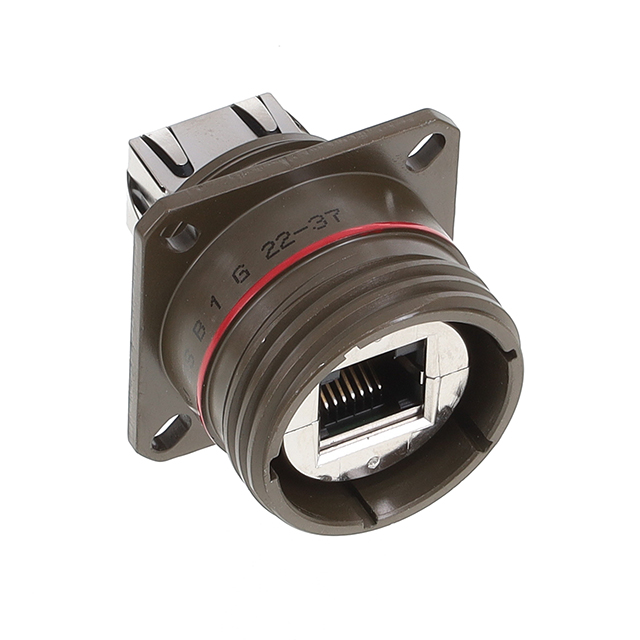

RJFTV2SB1G
ActiveAmphenol Socapex
RJF TV FIELD THREADED TRANSVERSA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJFTV2SB1G
ActiveAmphenol Socapex
RJF TV FIELD THREADED TRANSVERSA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJFTV2SB1G |
|---|---|
| Connector Type | Jack |
| Features | Circular Threaded Coupling |
| Housing Material | Aluminum |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount, Square Flange |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Tab Direction | User Selectable |
| Termination | Solder |
RJFTV2 Series
| Part | Ingress Protection | Ratings | Mounting Type | Type | Convert From (Adapter End) | Shell Material, Finish | Convert To (Adapter End) | Shielding | Features | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Tab Direction | Number of Ports | Number of Positions/Contacts | Number of Rows | Connector Type | Orientation | LED Color | Length [x] | Length [x] | Style | Color | Cable Type | Mounting Feature | Length | Length | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex | IP68 - Dust Tight Waterproof | Cat5e | Panel Mount Square Flange | Coupler | Jack 8p8c (RJ45) | Aluminum Olive Drab Cadmium Plated | PCB | Shielded | Circular Threaded Coupling | 85 °C | -40 °C | |||||||||||||||||
Amphenol Socapex | IP67 - Dust Tight Waterproof | Cat5e | Panel Mount Square Flange | Unshielded | Circular Threaded Coupling | 85 °C | -40 °C | PC Board Solder | User Selectable | 1 | 8p8c (RJ45 Ethernet) | 1 | Jack | Straight | Does Not Contain LED | |||||||||||||
Amphenol Socapex | IP67 - Dust Tight Waterproof | Cat5e | Panel Mount Square Flange | Unshielded | Circular Threaded Coupling | 85 °C | -40 °C | PC Board Solder | User Selectable | 1 | 8p8c (RJ45 Ethernet) | 1 | Jack | Straight | Does Not Contain LED | |||||||||||||
Amphenol Socapex | Flange Panel Mount | Double Shielded | Circular Threaded Coupling | 8p8c (RJ45 Ethernet) | Jack to Plug | 1.64 ft | 500 mm | Cat5e Industrial Environments - IP68 | Gray | Round Cable | ||||||||||||||||||
Amphenol Socapex | Flange Panel Mount | Double Shielded | Circular Threaded Coupling | 8p8c (RJ45 Ethernet) | Jack to Plug | 0.98 ft | 300 mm | Cat5e Industrial Environments - IP68 | Gray | Round Cable | ||||||||||||||||||
Amphenol Socapex | IP67 - Dust Tight Waterproof | Cat5e | Panel Mount Square Flange | Coupler | Jack 8p8c (RJ45) | Aluminum Nickel Plated | 8p8c (RJ45) Jack | Unshielded | Circular Threaded Coupling | 85 °C | -40 °C | Metal Gland | ||||||||||||||||
Amphenol Socapex | Flange Panel Mount | Double Shielded | Circular Threaded Coupling | 8p8c (RJ45 Ethernet) | Jack to Plug | Cat5e Industrial Environments - IP68 | Gray | Round Cable | 4.92 ' | 1.5 m | ||||||||||||||||||
Amphenol Socapex | Flange Panel Mount | Double Shielded | Circular Threaded Coupling | 8p8c (RJ45 Ethernet) | Jack to Plug | 0.98 ft | 300 mm | Cat5e Industrial Environments - IP68 | Gray | Round Cable | ||||||||||||||||||
Amphenol Socapex | Flange Panel Mount | Double Shielded | Circular Threaded Coupling | 8p8c (RJ45 Ethernet) | Jack to Plug | 1.64 ft | 500 mm | Cat5e Industrial Environments - IP68 | Gray | Round Cable | ||||||||||||||||||
Amphenol Socapex | IP68 - Dust Tight Waterproof | Cat5e | Panel Mount Square Flange | Circular Threaded Coupling | 85 °C | -40 °C | Solder | User Selectable | 1 | 8p8c (RJ45 Ethernet) | 1 | Jack | Straight | Does Not Contain LED | Aluminum |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 116.27 | |
| 10 | $ 90.58 | |||
| 25 | $ 82.45 | |||
| 50 | $ 76.98 | |||
| 100 | $ 72.02 | |||
Description
General part information
RJFTV2 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Cat5e
