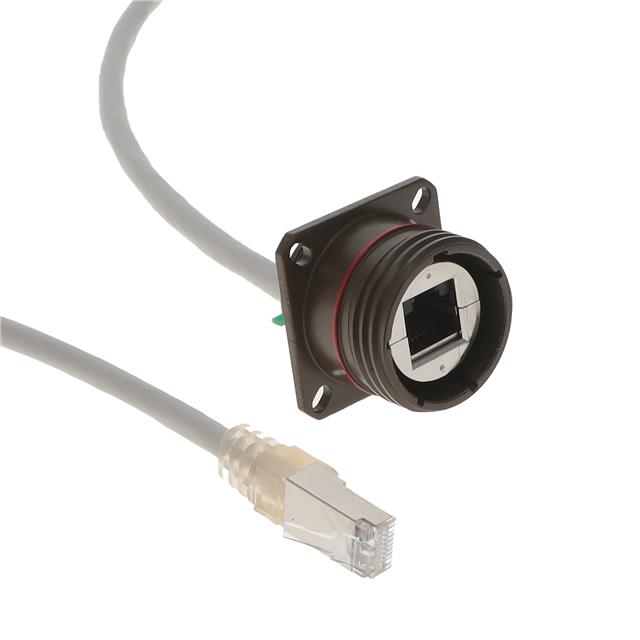

RJFTV2SA2G15100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 4.92'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJFTV2SA2G15100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 4.92'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJFTV2SA2G15100BTX

Cable Type	Round Cable
Color	Gray
Connector Type	Jack to Plug
Features	Circular Threaded Coupling
Length	4.92 '
Length	1.5 m
Mounting Type	Panel Mount, Flange
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Double Shielded
Style	Cat5e, Industrial Environments - IP68

RJFTV2 Series

Part	Ingress Protection	Ratings	Mounting Type	Type	Convert From (Adapter End)	Shell Material, Finish	Convert To (Adapter End)	Shielding	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Tab Direction	Number of Ports	Number of Positions/Contacts	Number of Rows	Connector Type	Orientation	LED Color	Length [x]	Length [x]	Style	Color	Cable Type	Mounting Feature	Length	Length	Housing Material
Amphenol Socapex RJFTV2PE2G00	IP68 - Dust Tight Waterproof	Cat5e	Panel Mount Square Flange	Coupler	Jack 8p8c (RJ45)	Aluminum Olive Drab Cadmium Plated	PCB	Shielded	Circular Threaded Coupling	85 °C	-40 °C
Amphenol Socapex RJFTV2PEM2N00	IP67 - Dust Tight Waterproof	Cat5e	Panel Mount Square Flange					Unshielded	Circular Threaded Coupling	85 °C	-40 °C	PC Board Solder	User Selectable	1	8p8c (RJ45 Ethernet)	1	Jack	Straight	Does Not Contain LED
Amphenol Socapex RJFTV2PEM2G00	IP67 - Dust Tight Waterproof	Cat5e	Panel Mount Square Flange					Unshielded	Circular Threaded Coupling	85 °C	-40 °C	PC Board Solder	User Selectable	1	8p8c (RJ45 Ethernet)	1	Jack	Straight	Does Not Contain LED
Amphenol Socapex RJFTV2SA2G05100BTX			Flange Panel Mount					Double Shielded	Circular Threaded Coupling						8p8c (RJ45 Ethernet)		Jack to Plug			1.64 ft	500 mm	Cat5e Industrial Environments - IP68	Gray	Round Cable
Amphenol Socapex RJFTV2SA2N03100BTX			Flange Panel Mount					Double Shielded	Circular Threaded Coupling						8p8c (RJ45 Ethernet)		Jack to Plug			0.98 ft	300 mm	Cat5e Industrial Environments - IP68	Gray	Round Cable
Amphenol Socapex RJFTV2PEM1N	IP67 - Dust Tight Waterproof	Cat5e	Panel Mount Square Flange	Coupler	Jack 8p8c (RJ45)	Aluminum Nickel Plated	8p8c (RJ45) Jack	Unshielded	Circular Threaded Coupling	85 °C	-40 °C														Metal Gland
Amphenol Socapex RJFTV2SA2G15100BTX			Flange Panel Mount					Double Shielded	Circular Threaded Coupling						8p8c (RJ45 Ethernet)		Jack to Plug					Cat5e Industrial Environments - IP68	Gray	Round Cable		4.92 '	1.5 m
Amphenol Socapex RJFTV2PE2N03100BTX			Flange Panel Mount					Double Shielded	Circular Threaded Coupling						8p8c (RJ45 Ethernet)		Jack to Plug			0.98 ft	300 mm	Cat5e Industrial Environments - IP68	Gray	Round Cable
Amphenol Socapex RJFTV2SA2N05100BTX			Flange Panel Mount					Double Shielded	Circular Threaded Coupling						8p8c (RJ45 Ethernet)		Jack to Plug			1.64 ft	500 mm	Cat5e Industrial Environments - IP68	Gray	Round Cable
Amphenol Socapex RJFTV2SB1G	IP68 - Dust Tight Waterproof	Cat5e	Panel Mount Square Flange						Circular Threaded Coupling	85 °C	-40 °C	Solder	User Selectable	1	8p8c (RJ45 Ethernet)	1	Jack	Straight	Does Not Contain LED									Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 124.00
		10	$ 113.79
		30	$ 109.41
		50	$ 105.77
		100	$ 99.93

Description

General part information

RJFTV2 Series

Modular Cable Jack to Plug 8p8c (RJ45, Ethernet) 4.92' (1.50m) Double Shielded
