Cable Assemblies

A3AKB-2036G

Active

TE Connectivity Raychem Cable Protection

IDC CABLE - ASC20B/AE20G/APK20B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet

Cable Assemblies

A3AKB-2036G

Active

TE Connectivity Raychem Cable Protection

IDC CABLE - ASC20B/AE20G/APK20B

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3AKB-2036G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

A3AKB Series

Part	Length [x]	Length [x]	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Number of Rows	Number of Positions	Connector Type	Features	Number of Positions	Length	Length	Length	Color
TE Connectivity Raychem Cable Protection A3AKB-1036G	3 ft	914.4 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	10	Socket to Plug	Polarizing Key
TE Connectivity Raychem Cable Protection A3AKB-1606G			Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2		Socket to Plug	Polarizing Key	16	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3AKB-3006G			Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	30	Socket to Plug	Polarizing Key		152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3AKB-5006G			Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	50	Socket to Plug	Polarizing Key		152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3AKB-2018M	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	20	Socket to Plug	Polarizing Key					Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AKB-3018M	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	30	Socket to Plug	Polarizing Key					Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AKB-2036G	3 ft	914.4 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	20	Socket to Plug	Polarizing Key
TE Connectivity Raychem Cable Protection A3AKB-1618M	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2		Socket to Plug	Polarizing Key	16				Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AKB-2036M	3 ft	914.4 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	20	Socket to Plug	Polarizing Key					Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AKB-4018G	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	40	Socket to Plug	Polarizing Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.08
		10	$ 14.98
		25	$ 13.90
		50	$ 13.14
		100	$ 12.42
		250	$ 11.54
		500	$ 10.91

Description

General part information

A3AKB Series

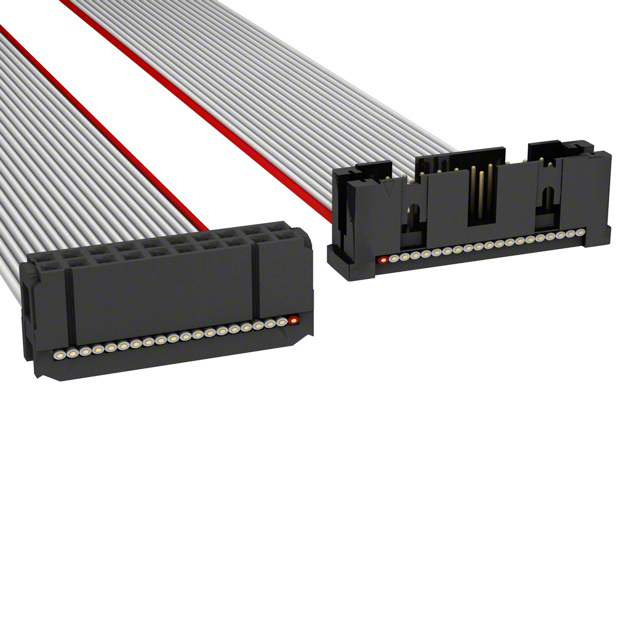

20 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet
