A3AKB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - ASC10B/AE10G/APK10B

Part	Length [x]	Length [x]	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Number of Rows	Number of Positions	Connector Type	Features	Number of Positions	Length	Length	Length	Color
TE Connectivity Raychem Cable Protection A3AKB-1036G	3 ft	914.4 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	10	Socket to Plug	Polarizing Key
TE Connectivity Raychem Cable Protection A3AKB-1606G			Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2		Socket to Plug	Polarizing Key	16	152.4 mm	6 "	0.5 '

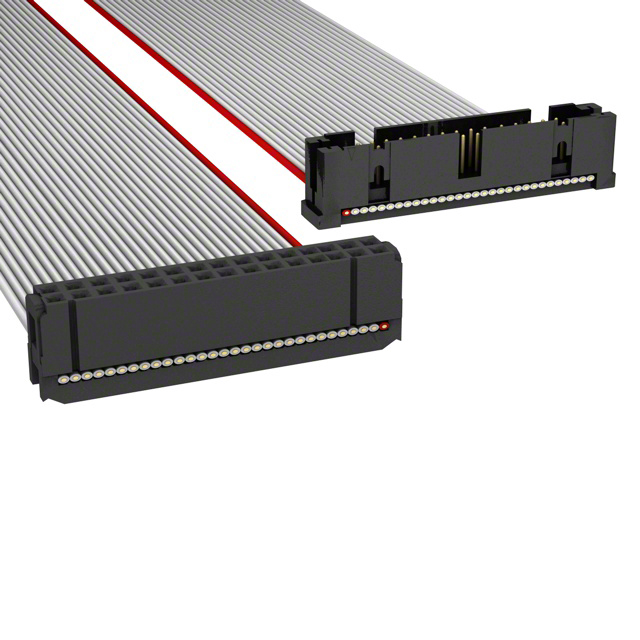

TE Connectivity Raychem Cable Protection A3AKB-3006G			Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	30	Socket to Plug	Polarizing Key		152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3AKB-5006G			Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	50	Socket to Plug	Polarizing Key		152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3AKB-2018M	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	20	Socket to Plug	Polarizing Key					Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AKB-3018M	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	30	Socket to Plug	Polarizing Key					Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AKB-2036G	3 ft	914.4 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	20	Socket to Plug	Polarizing Key

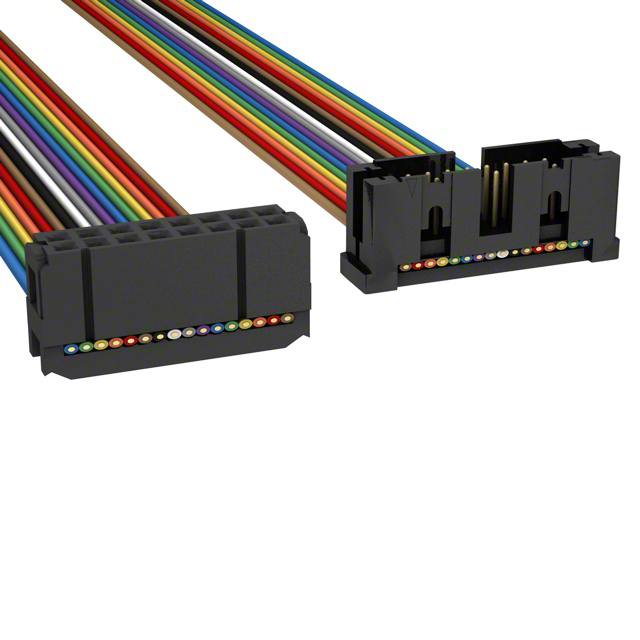

TE Connectivity Raychem Cable Protection A3AKB-1618M	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2		Socket to Plug	Polarizing Key	16				Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AKB-2036M	3 ft	914.4 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	20	Socket to Plug	Polarizing Key					Multiple Ribbon

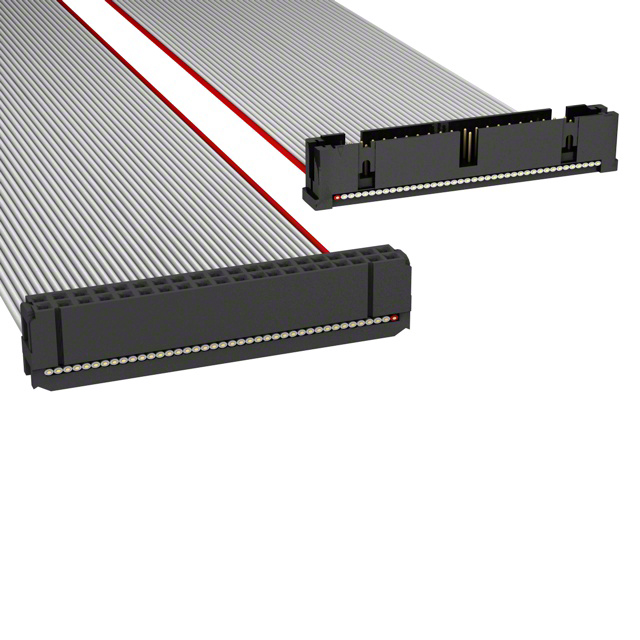

TE Connectivity Raychem Cable Protection A3AKB-4018G	1.5 ft	457.2 mm	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Gold	2	40	Socket to Plug	Polarizing Key
