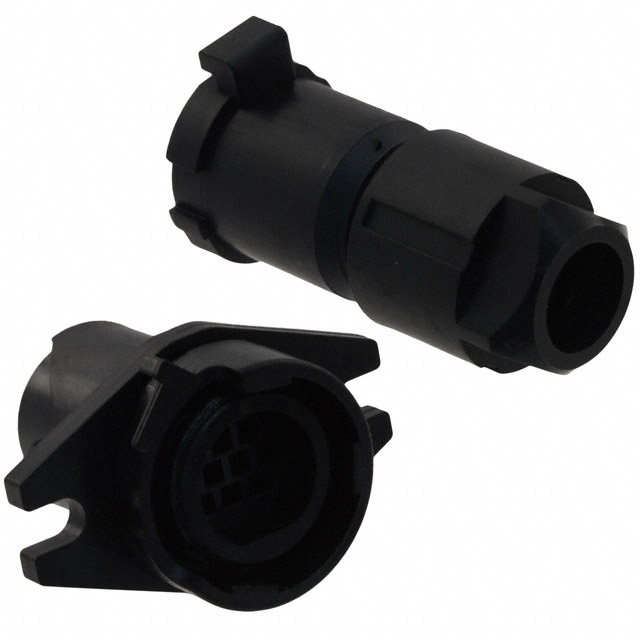

Specification	JN1KS10PL2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell
Housing Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Synthetic Resin
Mounting Feature	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-20 °C
Orientation	N (Normal)
Shell Material	Synthetic Resin
Shell Size - Insert	S
Shielding	Unshielded
Type	For Male Pins

JN1KS10P Series

Part	Connector Type	Shielding	Housing Color	Shell Material	Contact Shape	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Insert Material	Note	Orientation	Shell Size - Insert	Contact Size	Type	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Features	Mounting Type
JAE Electronics JN1KS10PL2	Receptacle Housing	Unshielded	Black	Synthetic Resin	Circular	Flange	125 °C	-20 °C	Push-Twist	Synthetic Resin	Contacts Not Included	N (Normal)	S	22	For Male Pins	10	Dust Tight Waterproof	IP67	Crimp	Backshell	Free Hanging (In-Line) Panel Mount
JAE Electronics JN1KS10PL1	Receptacle Housing	Unshielded	Black	Synthetic Resin	Circular	Flange	125 °C	-20 °C	Push-Twist	Synthetic Resin	Contacts Not Included	N (Normal)	S	22	For Male Pins	10	Dust Tight Waterproof	IP67	Crimp	Backshell	Free Hanging (In-Line) Panel Mount
