JN1KS10PL1

Active

JAE Electronics

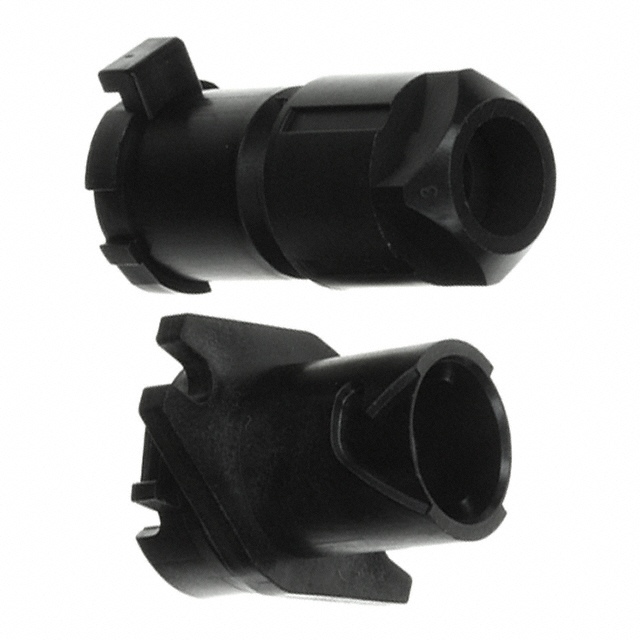

CONN RCP HSG MAL 10P INLN PNL MT

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCP HSG MAL 10P INLN PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	JN1KS10PL1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Feature	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Material	Synthetic Resin
Shell Size - Insert	S
Shielding	Unshielded
Type	For Male Pins

Part	Shielding	Contact Size	Shell Size - Insert	Ingress Protection	Orientation	Shell Material	Mounting Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Fastening Type	Type	Contact Shape	Mounting Feature	Contact Type	Number of Positions	Connector Type	Insert Material	Features
JAE Electronics JN1KS10PL2	Unshielded	22	S	IP67 - Dust Tight Waterproof	N	Synthetic Resin	Free Hanging (In-Line) Panel Mount	Contacts Not Included	-20 C	125 °C	Black	Push-Twist	For Male Pins	Circular	Flange	Crimp	10	Receptacle Housing	Synthetic Resin	Backshell
JAE Electronics JN1KS10PL1	Unshielded	22	S	IP67 - Dust Tight Waterproof	N	Synthetic Resin	Free Hanging (In-Line) Panel Mount	Contacts Not Included	-20 C	125 °C	Black	Push-Twist	For Male Pins	Circular	Flange	Crimp	10	Receptacle Housing	Synthetic Resin	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	33	$ 13.31

General part information

10 Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell
