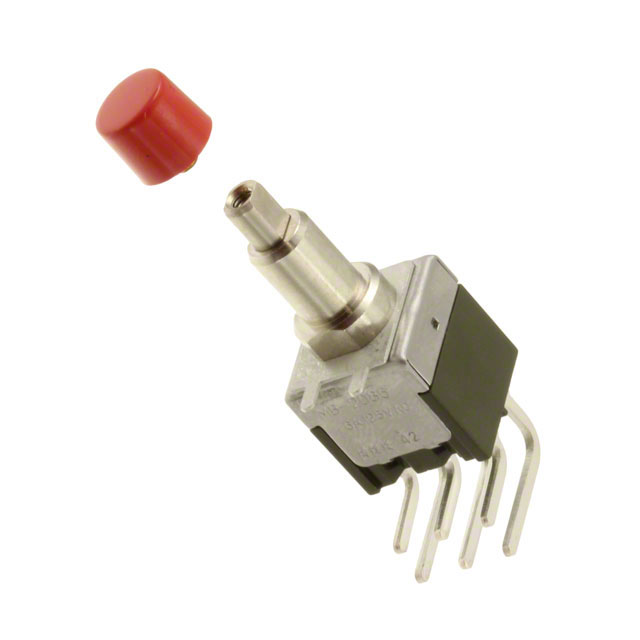

MB2085SS2W30-BC

Obsolete

NKK Switches

SWITCH PUSHBUTTON DPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2085SS2W30-BC

Obsolete

NKK Switches

SWITCH PUSHBUTTON DPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2085SS2W30-BC

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MB2085S Series

Part	Features	Type	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Termination Style	Voltage Rating - DC	Mechanical Life	Actuator Marking	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Circuit	Color - Actuator/Cap	Ingress Protection
NKK Switches MB2085SS1W03	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	PC Pin	30 V	100000 Cycles	No Marking	Plunger for Cap	-30 ░C	85 °C	25000 Steps	DPDT
NKK Switches MB2085SS2W30-CA	Epoxy Sealed Terminals	Standard	On-On		3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Black
NKK Switches MB2085SS1W03-CA	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Black
NKK Switches MB2085SS2W30	Epoxy Sealed Terminals	Standard	On-On		3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Plunger for Cap	-30 ░C	85 °C	25000 Steps	DPDT
NKK Switches MB2085SS2W30-BC	Epoxy Sealed Terminals	Standard	On-On		3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Red
NKK Switches MB2085SD3W01	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	Solder Lug	30 V		No Marking	Plunger for Cap	-30 ░C	85 °C	25000 Steps	DPDT		IP67 - Dust Tight Waterproof
NKK Switches MB2085SS1W03-CC	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Red
NKK Switches MB2085SS2W30-BG	Epoxy Sealed Terminals	Standard	On-Mom	6.5 mm	3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	4PDT	Blue
NKK Switches MB2085SS1G01-CA	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	0.4 VA	28 V	Panel Mount Rear	Solder Lug	28 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	50000 Cycles	DPDT	Black
NKK Switches MB2085SS1W01-CA	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	Solder Lug	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.89
		10	$ 16.62
		100	$ 15.51
		250	$ 13.62
		2500	$ 12.09

Description

General part information

MB2085S Series

Pushbutton Switch DPDT Standard Through Hole, Right Angle
