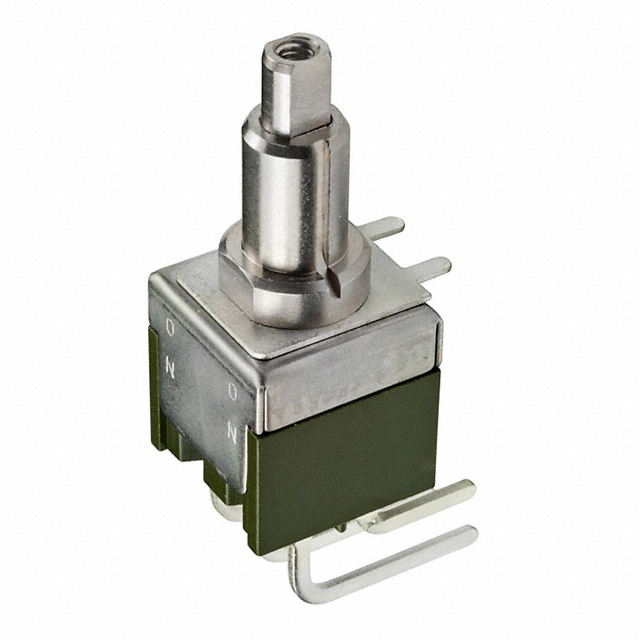

MB2085SS2W30

Obsolete

NKK Switches

SWITCH PUSHBUTTON DPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2085SS2W30

Obsolete

NKK Switches

SWITCH PUSHBUTTON DPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2085SS2W30

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MB2085S Series

Part	Features	Type	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Termination Style	Voltage Rating - DC	Mechanical Life	Actuator Marking	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Circuit	Color - Actuator/Cap	Ingress Protection
NKK Switches MB2085SS1W03	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	PC Pin	30 V	100000 Cycles	No Marking	Plunger for Cap	-30 ░C	85 °C	25000 Steps	DPDT
NKK Switches MB2085SS2W30-CA	Epoxy Sealed Terminals	Standard	On-On		3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Black
NKK Switches MB2085SS1W03-CA	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Black
NKK Switches MB2085SS2W30	Epoxy Sealed Terminals	Standard	On-On		3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Plunger for Cap	-30 ░C	85 °C	25000 Steps	DPDT
NKK Switches MB2085SS2W30-BC	Epoxy Sealed Terminals	Standard	On-On		3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Red
NKK Switches MB2085SD3W01	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	Solder Lug	30 V		No Marking	Plunger for Cap	-30 ░C	85 °C	25000 Steps	DPDT		IP67 - Dust Tight Waterproof
NKK Switches MB2085SS1W03-CC	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Red
NKK Switches MB2085SS2W30-BG	Epoxy Sealed Terminals	Standard	On-Mom	6.5 mm	3 A 6 A	125 V	Through Hole Right Angle	PC Pin	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	4PDT	Blue
NKK Switches MB2085SS1G01-CA	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	0.4 VA	28 V	Panel Mount Rear	Solder Lug	28 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	50000 Cycles	DPDT	Black
NKK Switches MB2085SS1W01-CA	Epoxy Sealed Terminals	Standard	On-On	6.5 mm	3 A 6 A	125 V	Panel Mount Rear	Solder Lug	30 V	100000 Cycles	No Marking	Button Round	-30 ░C	85 °C	25000 Steps	DPDT	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.29
		10	$ 8.37
		25	$ 8.02
		50	$ 7.63
		100	$ 7.32
		250	$ 6.88

Description

General part information

MB2085S Series

Pushbutton Switch DPDT Standard Through Hole, Right Angle
