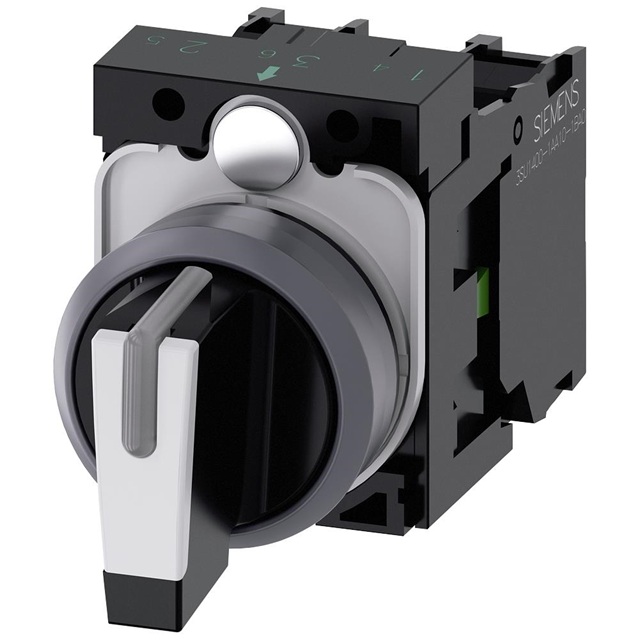

3SU11302BM601NA0

Active

Siemens

SWITCH SELECT 3POS DPST 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS ACT Profinet Integration WhitePaper SIRIUS Act IP69K and NEMA 4X Whitepaper +1

3SU11302BM601NA0

Active

Siemens

SWITCH SELECT 3POS DPST 10A 500V

Deep-Dive with AI

DocumentsSIRIUS ACT Profinet Integration WhitePaper SIRIUS Act IP69K and NEMA 4X Whitepaper +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SU11302BM601NA0

Approval Agency	EAC, CCC, UL, CSA, CE
Circuit	DPST-NO
Current Rating (Amps)	10 A
Depth Behind Flange	49.7 mm
Electrical Life	10000000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1130 Series

Part	Panel Cutout Dimensions [diameter]	Mechanical Life	Current Rating (Amps)	Voltage Rating - DC	Output	Actuator Type	Type	Contact Material	Ingress Protection	Voltage Rating - AC	Termination Style	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Illumination	Approval Agency	Circuit	Number of Positions	Depth Behind Flange	Color - Actuator/Cap	Mounting Type
Siemens 3SU11307AF101QA0	22.3 mm	500000 Cycles	10 A	500 V	Digital (Mechanical Switch)	Joystick	Joystick 2 - Axis	Silver Alloy	IP65 IP67 - Dust Tight Water Resistant Waterproof	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	360° Directional
Siemens 3SU11307BB101NA0	22.3 mm	100000 Cycles	10 A	500 V	Digital (Mechanical Switch)	Joystick	Joystick 2 - Axis	Silver Alloy	IP65 IP67 - Dust Tight Water Resistant Waterproof	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	360° Directional
Siemens 3SU11307BA101NA0	22.3 mm	100000 Cycles	10 A	500 V	Digital (Mechanical Switch)	Joystick	Joystick 2 - Axis	Silver Alloy	IP65 IP67 - Dust Tight Water Resistant Waterproof	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	360° Directional
Siemens 3SU11302BF601BA0	22.3 mm	1000000 Cycles	10 A	500 V			Standard		IP66 IP67 IP69K	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	Off-On	Non-Illuminated	CCC CE CSA EAC UL	SPST-NO	2	49.7 mm
Siemens 3SU11307BD101NA0	22.3 mm	500000 Cycles	10 A	500 V	Digital (Mechanical Switch)	Joystick	Joystick 2 - Axis	Silver Alloy	IP65 IP67 - Dust Tight Water Resistant Waterproof	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	360° Directional
Siemens 3SU11307AE101QA0	22.3 mm	100000 Cycles	10 A	500 V	Digital (Mechanical Switch)	Joystick	Joystick 2 - Axis	Silver Alloy	IP65 IP67 - Dust Tight Water Resistant Waterproof	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	360° Directional
Siemens 3SU11300AB603FA0	22.3 mm	10000000 Cycles	10 A	500 V		Button Round	Standard		IP66 IP67 IP69K	500 V	Spring Terminal	10000000 Cycles	70 °C	-25 °C	Off-Mom On-Mom			DPST-NO/NC			White	Panel Mount Front
Siemens 3SU11300AB101CA0	22.3 mm	10000000 Cycles	10 A	500 V		Button Round	Standard		IP66 IP67 IP69K	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	On-Mom			SPST-NC			Black	Panel Mount Front
Siemens 3SU11307AC101NA0	22.3 mm	500000 Cycles	10 A	500 V	Digital (Mechanical Switch)	Joystick	Joystick 2 - Axis	Silver Alloy	IP65 IP67 - Dust Tight Water Resistant Waterproof	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	360° Directional
Siemens 3SU11302BM601NA0	22.3 mm	1000000 Cycles	10 A	500 V			Standard		IP66 IP67 IP69K	500 V	Screw Terminal	10000000 Cycles	70 °C	-25 °C	Off-Mom	Non-Illuminated	CCC CE CSA EAC UL	DPST-NO		49.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 125.15

3SU11302BM601NA0

Deep-Dive with AI

3SU11302BM601NA0

Deep-Dive with AI

Technical Specifications

3SU1130 Series

Pricing

Description

3SU1130 Series

Documents

SIRIUS ACT Profinet Integration WhitePaper

SIRIUS Act IP69K and NEMA 4X Whitepaper

Datasheet

3SU1130 Series
