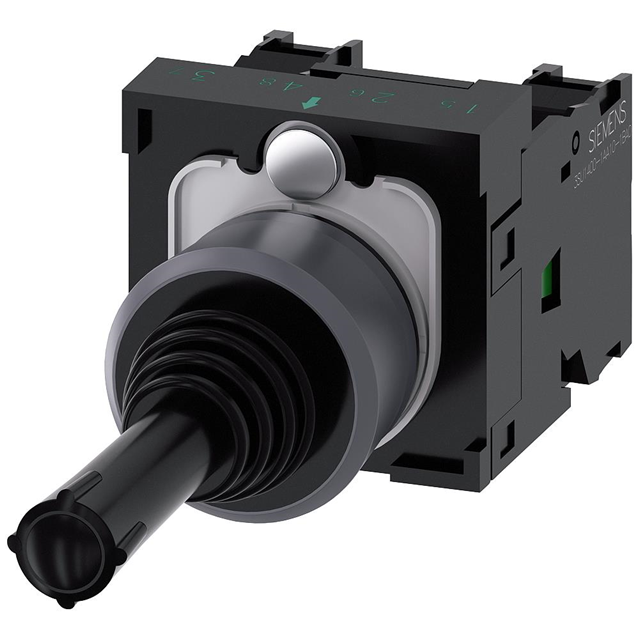

3SU11307AC101NA0 - MFG_3SU11307AA101NA0

3SU11307AC101NA0

Active
Siemens

SWITCH JOYSTICK DGTL 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Act IP69K and NEMA 4X WhitepaperSIRIUS ACT Profinet Integration WhitePaper+1
3SU11307AC101NA0 - MFG_3SU11307AA101NA0

3SU11307AC101NA0

Active
Siemens

SWITCH JOYSTICK DGTL 10A 500V

Deep-Dive with AI

DocumentsSIRIUS Act IP69K and NEMA 4X WhitepaperSIRIUS ACT Profinet Integration WhitePaper+1

Technical Specifications

Parameters and characteristics for this part

Specification3SU11307AC101NA0
Actuator TypeJoystick
Contact MaterialSilver Alloy
Current Rating (Amps)10 A
Electrical Life10000000 Cycles
Ingress ProtectionIP65, IP67 - Dust Tight, Water Resistant, Waterproof
Mechanical Life500000 Cycles
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
OutputDigital (Mechanical Switch)
Panel Cutout Dimensions [diameter]22.3 mm
Switch Function360° Directional
Termination StyleScrew Terminal
TypeJoystick, 2 - Axis
Voltage Rating - AC500 V
Voltage Rating - DC500 V

3SU1130 Series

PartPanel Cutout Dimensions [diameter]Mechanical LifeCurrent Rating (Amps)Voltage Rating - DCOutputActuator TypeTypeContact MaterialIngress ProtectionVoltage Rating - ACTermination StyleElectrical LifeOperating Temperature [Max]Operating Temperature [Min]Switch FunctionIlluminationApproval AgencyCircuitNumber of PositionsDepth Behind FlangeColor - Actuator/CapMounting Type
Siemens
3SU11307AF101QA0
22.3 mm
500000 Cycles
10 A
500 V
Digital (Mechanical Switch)
Joystick
Joystick
2 - Axis
Silver Alloy
IP65
IP67 - Dust Tight
Water Resistant
Waterproof
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
360° Directional
Siemens
3SU11307BB101NA0
22.3 mm
100000 Cycles
10 A
500 V
Digital (Mechanical Switch)
Joystick
Joystick
2 - Axis
Silver Alloy
IP65
IP67 - Dust Tight
Water Resistant
Waterproof
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
360° Directional
Siemens
3SU11307BA101NA0
22.3 mm
100000 Cycles
10 A
500 V
Digital (Mechanical Switch)
Joystick
Joystick
2 - Axis
Silver Alloy
IP65
IP67 - Dust Tight
Water Resistant
Waterproof
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
360° Directional
Siemens
3SU11302BF601BA0
22.3 mm
1000000 Cycles
10 A
500 V
Standard
IP66
IP67
IP69K
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
Off-On
Non-Illuminated
CCC
CE
CSA
EAC
UL
SPST-NO
2
49.7 mm
Siemens
3SU11307BD101NA0
22.3 mm
500000 Cycles
10 A
500 V
Digital (Mechanical Switch)
Joystick
Joystick
2 - Axis
Silver Alloy
IP65
IP67 - Dust Tight
Water Resistant
Waterproof
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
360° Directional
Siemens
3SU11307AE101QA0
22.3 mm
100000 Cycles
10 A
500 V
Digital (Mechanical Switch)
Joystick
Joystick
2 - Axis
Silver Alloy
IP65
IP67 - Dust Tight
Water Resistant
Waterproof
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
360° Directional
Siemens
3SU11300AB603FA0
22.3 mm
10000000 Cycles
10 A
500 V
Button
Round
Standard
IP66
IP67
IP69K
500 V
Spring Terminal
10000000 Cycles
70 °C
-25 °C
Off-Mom
On-Mom
DPST-NO/NC
White
Panel Mount
Front
Siemens
3SU11300AB101CA0
22.3 mm
10000000 Cycles
10 A
500 V
Button
Round
Standard
IP66
IP67
IP69K
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
On-Mom
SPST-NC
Black
Panel Mount
Front
Siemens
3SU11307AC101NA0
22.3 mm
500000 Cycles
10 A
500 V
Digital (Mechanical Switch)
Joystick
Joystick
2 - Axis
Silver Alloy
IP65
IP67 - Dust Tight
Water Resistant
Waterproof
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
360° Directional
Siemens
3SU11302BM601NA0
22.3 mm
1000000 Cycles
10 A
500 V
Standard
IP66
IP67
IP69K
500 V
Screw Terminal
10000000 Cycles
70 °C
-25 °C
Off-Mom
Non-Illuminated
CCC
CE
CSA
EAC
UL
DPST-NO
49.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 487.41

Description

General part information

3SU1130 Series

Joystick, 2 - Axis Digital (Mechanical Switch) Output
