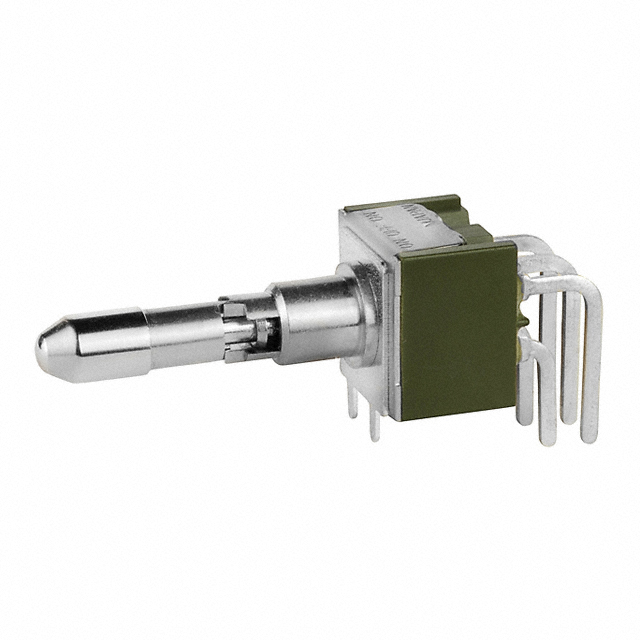

Specification	M2023LL2W30

Actuator Length	16.5 mm
Actuator Material	Chrome Plated, Brass
Actuator Type	Locking Lever
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating	6 A, 3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2023LL Series

Part	Actuator Type	Operating Temperature (Max)	Operating Temperature (Min)	Panel Cutout Diameter	Panel Cutout Shape	Features	Bushing Thread	Voltage Rating - DC	Switch Function	Termination Style	Mounting Type	Circuit	Illumination	Current Rating	Actuator Length	Voltage Rating - AC	Electrical Life (Cycles)	Actuator Material	Ingress Protection Description	Ingress Protection IP Rating
NKK Switches M2023LL1A01	Locking Lever	85 °C	-30 °C	6.5 mm	Circular	Epoxy Sealed Terminals	1/4-40	30 V	On-Off-On	Solder Lug	Panel Mount	DPDT	Non-Illuminated	3 A 6 A	16.5 mm	125 V	25000	Brass Chrome Plated
NKK Switches M2023LL2W30	Locking Lever	85 °C	-30 °C			Epoxy Sealed Terminals	Unthreaded	30 V	On-Off-On	PC Pin	Right Angle Through Hole	DPDT	Non-Illuminated	3 A 6 A	16.5 mm	125 V	25000	Brass Chrome Plated
NKK Switches M2023LL1G03	Locking Lever	85 °C	-30 °C	6.5 mm	Circular	Epoxy Sealed Terminals	1/4-40	28 V	On-Off-On	PC Pin	Panel Mount	DPDT	Non-Illuminated	0.4 VA	16.5 mm	28 V	50000	Brass Chrome Plated
NKK Switches M2023LL1W01-A	Locking Lever	85 °C	-30 °C	6.5 mm	Circular	Black Cap	1/4-40	30 V	On-Off-On	Solder Lug	Panel Mount	DPDT	Non-Illuminated	3 A 6 A	16.5 mm	125 V	25000	Brass Chrome Plated
NKK Switches M2023LL3W01	Locking Lever	85 °C	-30 °C	6.5 mm	Circular	Epoxy Sealed Terminals	1/4-40	30 V	On-Off-On	Solder Lug	Panel Mount	DPDT	Non-Illuminated	3 A 6 A	16.5 mm	125 V	25000	Brass Chrome Plated	Dust Tight Waterproof	IP67
NKK Switches M2023LL1W03	Locking Lever	85 °C	-30 °C	6.5 mm	Circular	Epoxy Sealed Terminals	1/4-40	30 V	On-Off-On	PC Pin	Panel Mount	DPDT	Non-Illuminated	3 A 6 A	16.5 mm	125 V	25000	Brass Chrome Plated
NKK Switches M2023LL1G01	Locking Lever	85 °C	-30 °C	6.5 mm	Circular	Epoxy Sealed Terminals	1/4-40	28 V	On-Off-On	Solder Lug	Panel Mount	DPDT	Non-Illuminated	0.4 VA	16.5 mm	28 V	50000	Brass Chrome Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M2023LL2W30 | Datasheet
