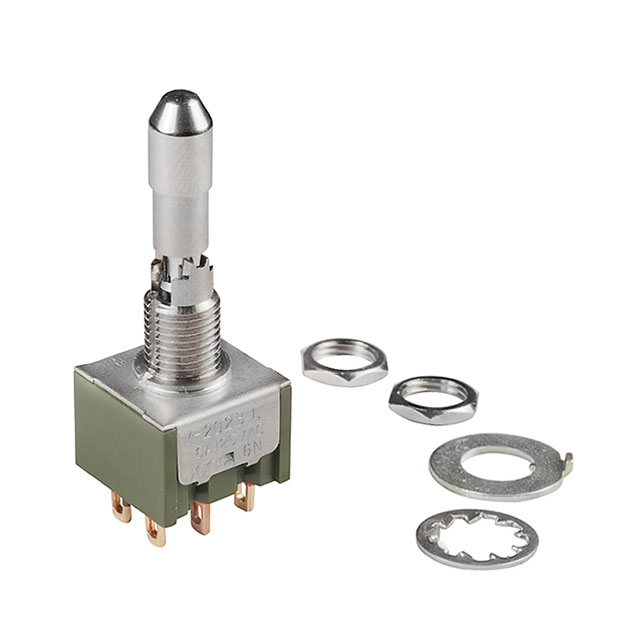

M2023LL1A01

Obsolete

NKK Switches

BUSHING MOUNT MINIATURE TOGGLE SWITCH; POLES: DPDT; CIRCUITS: ON-OFF-ON; CURRENT RATING: 6A (AC), 3A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: LOCKING LEVER; ACTUATOR LENGTH: 16.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: PANEL MOUNT; TERMINATION STYLE: SOLDER LUG; PANEL CUTOUT DIMENSIONS: CIRCULAR - 6.50MM DIA; BUSHING THREAD: 14614; FEATURES: EPOXY SEALED TERMINALS; RATING: 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2023LL1A01

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2023LL1A01

Actuator Length [x]	16.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Locking Lever
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2023LL Series

Part	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Switch Function	Actuator Material	Circuit	Current Rating (Amps)	Electrical Life	Bushing Thread	Features	Panel Cutout Dimensions [diameter]	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Termination Style	Mounting Type
NKK Switches M2023LL1A01	125 V	30 V	Locking Lever	On-Off-On	Brass Chrome Plated	DPDT	3 A 6 A	25000 Steps	1/4-40	Epoxy Sealed Terminals	6.5 mm	Non-Illuminated	-30 ░C	85 °C	16.5 mm	Solder Lug
NKK Switches M2023LL2W30	125 V	30 V	Locking Lever	On-Off-On	Brass Chrome Plated	DPDT	3 A 6 A	25000 Steps	Unthreaded	Epoxy Sealed Terminals		Non-Illuminated	-30 ░C	85 °C	16.5 mm	PC Pin	Through Hole Right Angle
NKK Switches M2023LL1G03	28 V	28 V	Locking Lever	On-Off-On	Brass Chrome Plated	DPDT	0.4 VA	50000 Cycles	1/4-40	Epoxy Sealed Terminals	6.5 mm	Non-Illuminated	-30 ░C	85 °C	16.5 mm	PC Pin
NKK Switches M2023LL1W01-A	125 V	30 V	Locking Lever	On-Off-On	Brass Chrome Plated	DPDT	3 A 6 A	25000 Steps	1/4-40	Black Cap	6.5 mm	Non-Illuminated	-30 ░C	85 °C	16.5 mm	Solder Lug
NKK Switches M2023LL1W03	125 V	30 V	Locking Lever	On-Off-On	Brass Chrome Plated	DPDT	3 A 6 A	25000 Steps	1/4-40	Epoxy Sealed Terminals	6.5 mm	Non-Illuminated	-30 ░C	85 °C	16.5 mm	PC Pin
NKK Switches M2023LL1G01	28 V	28 V	Locking Lever	On-Off-On	Brass Chrome Plated	DPDT	0.4 VA	50000 Cycles	1/4-40	Epoxy Sealed Terminals	6.5 mm	Non-Illuminated	-30 ░C	85 °C	16.5 mm	Solder Lug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M2023LL Series

Toggle Switch DPDT Panel Mount
