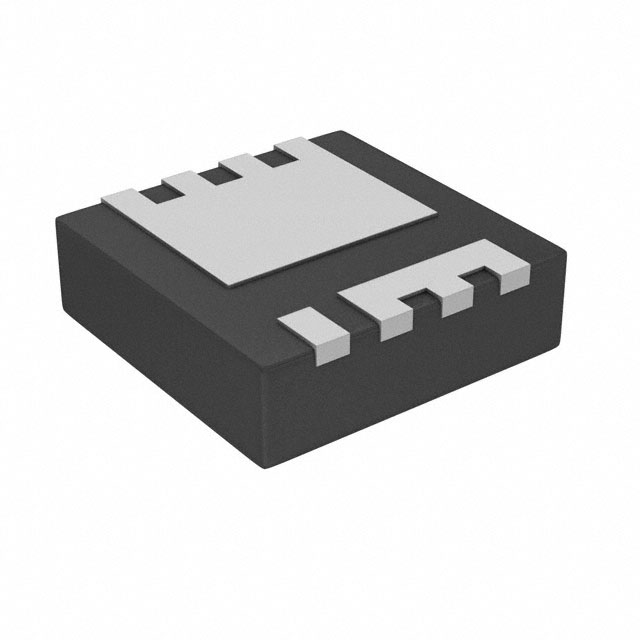

BSZ014NE2LS5IFATMA1
ActiveInfineon Technologies
OPTIMOS™ 5 N-CHANNEL POWER MOSFET 25 V ; PQFN 3.3 X 3.3 PACKAGE; 1.45 MOHM; MONOLITHICALLY INTEGRATED SCHOTTKY-LIKE DIODE
Deep-Dive with AI
Search across all available documentation for this part.
BSZ014NE2LS5IFATMA1
ActiveInfineon Technologies
OPTIMOS™ 5 N-CHANNEL POWER MOSFET 25 V ; PQFN 3.3 X 3.3 PACKAGE; 1.45 MOHM; MONOLITHICALLY INTEGRATED SCHOTTKY-LIKE DIODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSZ014NE2LS5IFATMA1 |
|---|---|
| Drain to Source Voltage (Vdss) | 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Feature | Schottky Diode (Body) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 2300 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 69 W, 2.1 W |
| Rds On (Max) @ Id, Vgs | 1.45 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 16 V |
| Vgs(th) (Max) @ Id | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.25 | |||
| 100 | $ 0.86 | |||
| 500 | $ 0.80 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.25 | |||
| 100 | $ 0.86 | |||
| 500 | $ 0.80 | |||
| Tape & Reel (TR) | 5000 | $ 0.80 | ||
Description
General part information
BSZ014 Series
With the OptiMOS™ 5 25V and 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.
