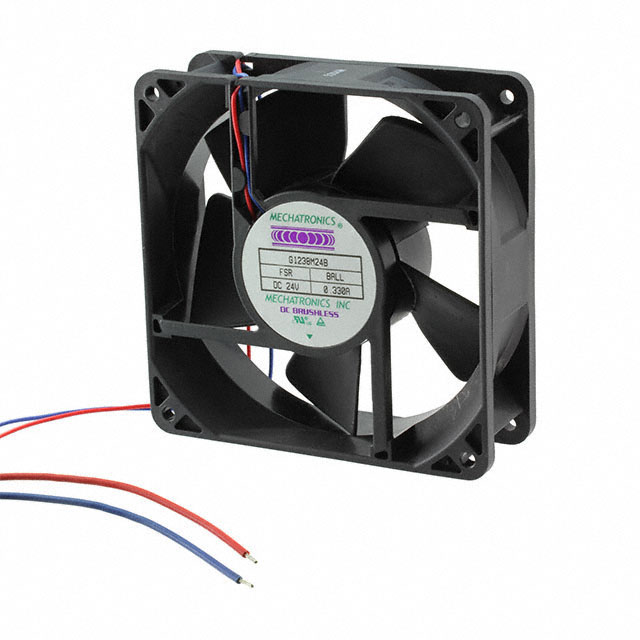

G1238M24B-FSR-CC

Active

Mechatronics Fan Group

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Fan, Blower Lead Wire Spec DC Lead Wire Specs +2

G1238M24B-FSR-CC

Active

Mechatronics Fan Group

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDC Fan, Blower Lead Wire Spec DC Lead Wire Specs +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.79

Description

General part information

G1238 Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 125.0 CFM (3.50m³/min) 2 Wire Leads

Documents

Technical documentation and resources

DC Fan, Blower Lead Wire Spec

Datasheet

DC Lead Wire Specs

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Specification	G1238M24B-FSR-CC	G1238 Series

Air Flow	125 CFM	88 - 158 CFM
Air Flow	3.5 m³/min	2.46 - 107 m³/min
Air Flow	-	158 CFM
Air Flow	-	3 mł/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.33 A	0.18 - 750 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Conformal Coating	Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach), Conformal Coating, Locked Rotor Sensor, PWM Control
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	43 dB	34 - 49 dB
RPM	2800 RPM	2000 - 3600 RPM
Size / Dimension [x]	119 mm	119 - 120 mm
Size / Dimension [y]	119 mm	119 - 120 mm
Static Pressure	0.32 in H2O	0.17 - 0.49 in H2O
Static Pressure	79.7 Pa	42.3 - 122.1 Pa
Termination	2 Wire Leads	2 Wire Leads, 4 Wire Leads, 3 Wire Leads, 5 Wire Leads
Voltage - Rated	24 VDC	12 - 24 VDC
Voltage - Rated	-	48 VDC
Weight	335.66 g	335.66 - 340.19 g
Weight	0.74 lb	0.74 - 0.75 lb
Width [y]	38 mm	38 mm

Part

Size / Dimension [y]

Size / Dimension [x]

Approval Agency

Width [y]

Weight

Static Pressure

Material - Blade

Bearing Type

Features

Noise

Current Rating (Amps)

Fan Type

Termination

RPM

Voltage - Rated

Ingress Protection

Air Flow

Voltage - Rated [custom]

Air Flow

Mechatronics Fan Group

G1238M12B-FSR

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.32 in H2O

79.7 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

43 dB

600 mA

Tubeaxial

2 Wire Leads

2800 RPM

12 VDC

Mechatronics Fan Group

G1238H12B-FSR-EM

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.41 in H2O

102.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

46 dB(A)

750 mA

Tubeaxial

2 Wire Leads

3200 RPM

12 VDC

IP57 - Dust Protected, Waterproof

3.95 m³/min

141.2 CFM

Mechatronics Fan Group

G1238E12B-FSR

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

2 Wire Leads

3600 RPM

12 VDC

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238H24B1-FSR-WS

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.41 in H2O

102.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

46 dB(A)

450 mA

Tubeaxial

4 Wire Leads

3200 RPM

24 VDC

3.95 m³/min

141.2 CFM

Mechatronics Fan Group

G1238M24B1-FSR-TTL

120 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.32 in H2O

79.7 Pa

Polybutylene Terephthalate (PBT)

Ball

Speed Sensor (Tach), Thermal Overload Protector (TOP)

43 dB

0.33 A

Tubeaxial

3 Wire Leads

2800 RPM

24 VDC

3.5 m³/min

125 CFM

Mechatronics Fan Group

G1238E24B-FSR-CC

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Conformal Coating, Thermal Overload Protector (TOP)

49 dB

600 mA

Tubeaxial

2 Wire Leads

3600 RPM

24 VDC

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238H24B1-FSR-WS-EM

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.41 in H2O

102.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

46 dB(A)

450 mA

Tubeaxial

4 Wire Leads

3200 RPM

24 VDC

IP57 - Dust Protected, Waterproof

3.95 m³/min

141.2 CFM

Mechatronics Fan Group

G1238E12B1-FSR-WS-EM

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

4 Wire Leads

3600 RPM

12 VDC

IP57 - Dust Protected, Waterproof

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238E12B1-FSR-WS

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

4 Wire Leads

3600 RPM

12 VDC

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238E12B-FSR-EM-RL

120 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

2 Wire Leads

3600 RPM

12 VDC

4.42 m³/min

158 CFM

Part	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Width [y]	Weight	Weight	Static Pressure	Static Pressure	Material - Blade	Bearing Type	Features	Noise	Current Rating (Amps)	Fan Type	Termination	RPM	Voltage - Rated	Ingress Protection	Air Flow	Air Flow	Air Flow
Mechatronics Fan Group G1238M12B-FSR	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.32 in H2O	79.7 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	43 dB	600 mA	Tubeaxial	2 Wire Leads	2800 RPM	12 VDC
Mechatronics Fan Group G1238H12B-FSR-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	46 dB(A)	750 mA	Tubeaxial	2 Wire Leads	3200 RPM	12 VDC	IP57 - Dust Protected, Waterproof	3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238E12B-FSR	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	2 Wire Leads	3600 RPM	12 VDC		4.42 m³/min	158 CFM
Mechatronics Fan Group G1238H24B1-FSR-WS	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	46 dB(A)	450 mA	Tubeaxial	4 Wire Leads	3200 RPM	24 VDC		3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238M24B1-FSR-TTL	120 mm	120 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.32 in H2O	79.7 Pa	Polybutylene Terephthalate (PBT)	Ball	Speed Sensor (Tach), Thermal Overload Protector (TOP)	43 dB	0.33 A	Tubeaxial	3 Wire Leads	2800 RPM	24 VDC		3.5 m³/min	125 CFM
Mechatronics Fan Group G1238E24B-FSR-CC	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Conformal Coating, Thermal Overload Protector (TOP)	49 dB	600 mA	Tubeaxial	2 Wire Leads	3600 RPM	24 VDC		4.42 m³/min	158 CFM
Mechatronics Fan Group G1238H24B1-FSR-WS-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	46 dB(A)	450 mA	Tubeaxial	4 Wire Leads	3200 RPM	24 VDC	IP57 - Dust Protected, Waterproof	3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238E12B1-FSR-WS-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	4 Wire Leads	3600 RPM	12 VDC	IP57 - Dust Protected, Waterproof	4.42 m³/min	158 CFM
Mechatronics Fan Group G1238E12B1-FSR-WS	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	4 Wire Leads	3600 RPM	12 VDC		4.42 m³/min		158 CFM
Mechatronics Fan Group G1238E12B-FSR-EM-RL	120 mm	120 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	2 Wire Leads	3600 RPM	12 VDC		4.42 m³/min	158 CFM
