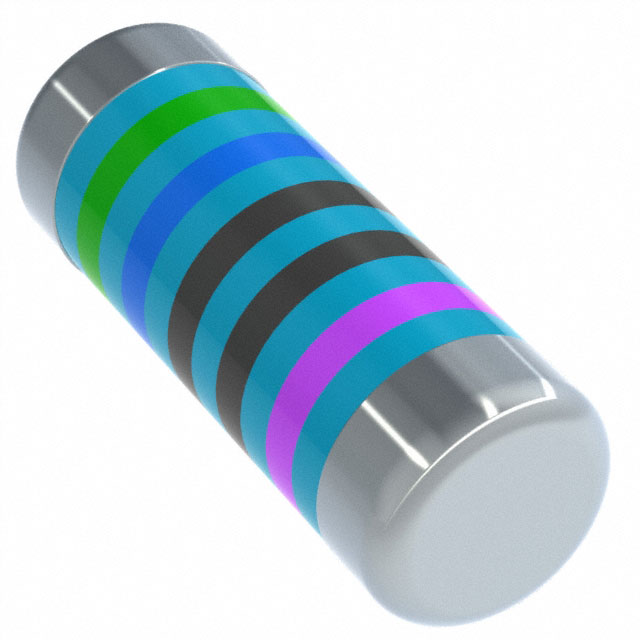

SMA-A0204BTNX560R

Active

TE Connectivity Passive Product

RES 560 OHM 0.1% 2/5W MELF 0204

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMA-A0204BTNX560R

Active

TE Connectivity Passive Product

RES 560 OHM 0.1% 2/5W MELF 0204

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMA-A0204BTNX560R

Composition	Metal Film
Features	Automotive AEC-Q200
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0204, MELF
Power (Watts)	0.4 W
Power (Watts)	0.4 W
Ratings	AEC-Q200
Resistance	560 Ohms
Size / Dimension [custom]	3.5 mm
Size / Dimension [custom]	0.138 in
Size / Dimension [diameter]	0.055 in
Size / Dimension [diameter]	1.4 mm
Temperature Coefficient	15 ppm/°C
Tolerance	0.1 %

SMA-A0204 Series

Part	Tolerance	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Number of Terminations	Ratings	Resistance	Composition	Features	Power (Watts)	Power (Watts)	Package / Case	Supplier Device Package
TE Connectivity Passive Product SMA-A0204BTNX1K0	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	1000 Ohms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX3K3	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	3300 Ohms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX8K2	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	8.2 kOhms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX27K	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	27 kOhms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX100K	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	100 kOhms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX33K	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	33 kOhms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF	0204
TE Connectivity Passive Product SMA-A0204BTNX100R	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	100 Ohms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX470R	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	470 Ohms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX560R	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	560 Ohms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF
TE Connectivity Passive Product SMA-A0204BTNX22K	0.1 %	15 ppm/°C	155 °C	-55 °C	0.055 in	3.5 mm	1.4 mm	0.138 in	2	AEC-Q200	22 kOhms	Metal Film	Automotive AEC-Q200	0.4 W	0.4 W	0204 MELF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.55
		10	$ 0.43
		25	$ 0.39
		50	$ 0.35
		100	$ 0.29
		250	$ 0.27
		500	$ 0.23
	Digi-Reel®	1	$ 0.55
		10	$ 0.43
		25	$ 0.39
		50	$ 0.35
		100	$ 0.29
		250	$ 0.27
		500	$ 0.23
	Tape & Reel (TR)	3000	$ 0.23

Description

General part information

SMA-A0204 Series

560 Ohms ±0.1% 0.4W, 2/5W Chip Resistor MELF, 0204 Automotive AEC-Q200 Metal Film
