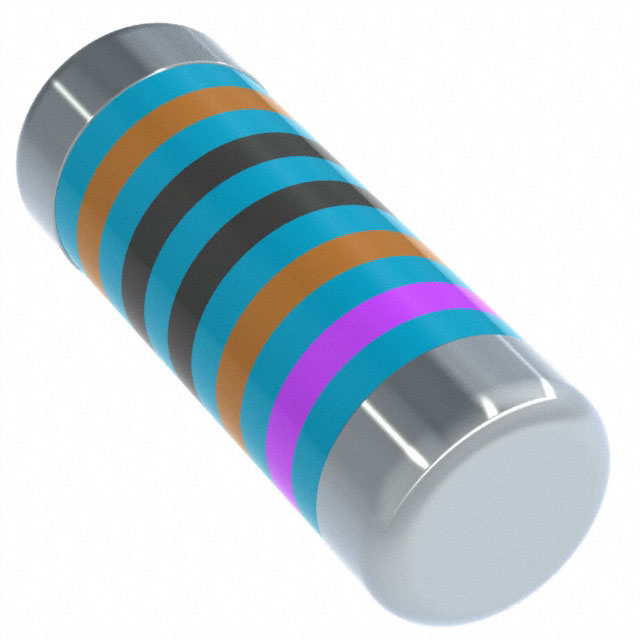

SMA-A0204BTNX1K0
ActiveTE Connectivity Passive Product
RES 1K OHM 0.1% 2/5W MELF 0204
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMA-A0204BTNX1K0
ActiveTE Connectivity Passive Product
RES 1K OHM 0.1% 2/5W MELF 0204
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-A0204BTNX1K0 |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0204, MELF |
| Power (Watts) | 0.4 W |
| Power (Watts) | 0.4 W |
| Ratings | AEC-Q200 |
| Resistance | 1000 Ohms |
| Size / Dimension [custom] | 3.5 mm |
| Size / Dimension [custom] | 0.138 in |
| Size / Dimension [diameter] | 0.055 in |
| Size / Dimension [diameter] | 1.4 mm |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.55 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.39 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.55 | ||
| 10 | $ 0.43 | |||
| 25 | $ 0.39 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.23 | |||
| Tape & Reel (TR) | 3000 | $ 0.23 | ||
Description
General part information
SMA-A0204 Series
1 kOhms ±0.1% 0.4W, 2/5W Chip Resistor MELF, 0204 Automotive AEC-Q200 Metal Film
Documents
Technical documentation and resources
