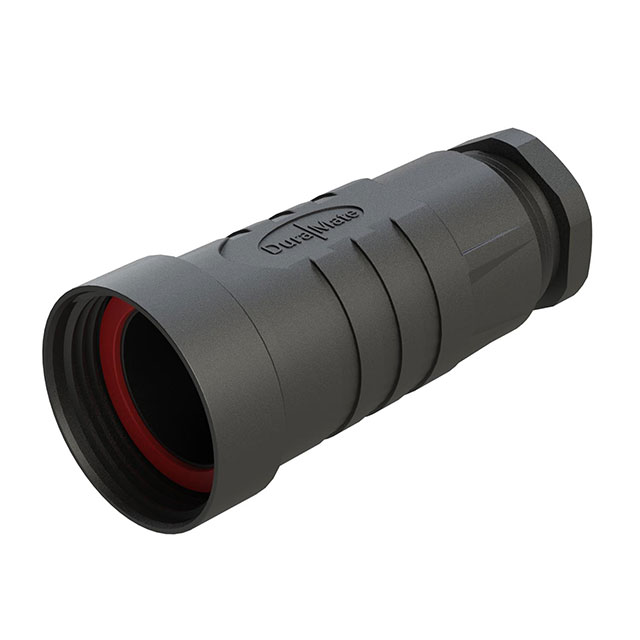

AHDPBS-18-SM01
ActiveAmphenol Sine Systems Corp
CONN BACKSH SZ18 BLK 1 7/16-12
Deep-Dive with AI
Search across all available documentation for this part.
AHDPBS-18-SM01
ActiveAmphenol Sine Systems Corp
CONN BACKSH SZ18 BLK 1 7/16-12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDPBS-18-SM01 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [diameter] | 16 mm |
| Cable Opening [Max] [diameter] | 0.63 in |
| Cable Opening [Min] [diameter] | 12 mm |
| Cable Opening [Min] [diameter] | 0.472 in |
| Color | Black |
| Diameter - Outside [diameter] | 1.535 in |
| Diameter - Outside [diameter] | 39 mm |
| For Use With/Related Products | AHDP Series |
| Includes | 1 Backshell, 1 Compression Nut, 1 Rubber Ring, 1 Cage Clamp |
| Material | Thermoplastic |
| Shell Size - Insert | 18 |
| Shielding | Unshielded |
| Thread Size | 1 7/16-12 UN-2B |
| Type | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.81 | |
| 10 | $ 10.88 | |||
| 25 | $ 10.20 | |||
| 50 | $ 9.71 | |||
| 140 | $ 9.03 | |||
| 280 | $ 8.60 | |||
| 560 | $ 8.19 | |||
| 1120 | $ 7.80 | |||
Description
General part information
AHDPBS Series
Black Connector Backshell 1 7/16-12 UN-2B 18
