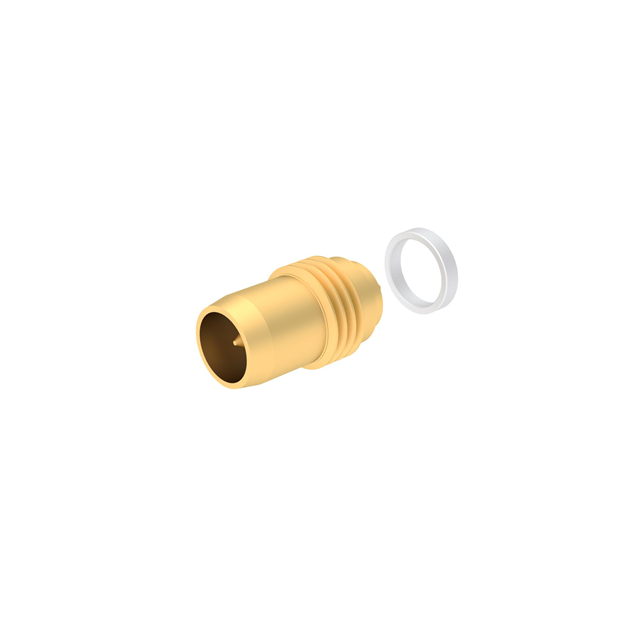

R128639000

Active

Radiall USA, Inc.

BMA / THREAD-IN PLUG RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BMA / THREAD-IN PLUG RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R128639000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Hermetically Sealed, Extended Insulation
Frequency - Max [Max]	22 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Type	Features	Connector Type	Shield Termination	Mating Cycles	Voltage Rating	Contact Termination	Center Contact Plating	Fastening Type	Frequency - Max [Max]	Dielectric Material	Body Finish	Connector Style	Impedance	Body Material	Center Contact Material	Number of Ports	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
Radiall USA, Inc. R128639020	Through Hole	Extended Insulation Hermetically Sealed	Male Pin Receptacle	Solder	1000	500 V	Solder	Gold	Snap-On	22 GHz	Polytetrafluoroethylene (PTFE)	Gold	BMA	50 Ohms	Stainless Steel	Beryllium Copper	1	Gold	125 °C	-65 ░C
Radiall USA, Inc. R128639000	Through Hole	Extended Insulation Hermetically Sealed	Male Pin Receptacle	Solder	1000	500 V	Solder	Gold	Snap-On	22 GHz	Polytetrafluoroethylene (PTFE)	Gold	BMA	50 Ohms	Stainless Steel	Beryllium Copper	1	Gold	125 °C	-65 ░C
Radiall USA, Inc. R128639100	Through Hole		Male Pin Receptacle	Solder	1000	500 V	Solder	Gold	Snap-On	22 GHz	Polytetrafluoroethylene (PTFE)		BMA	50 Ohms	Stainless Steel	Beryllium Copper	1	Silver	125 °C	-65 ░C	IP54 - Dust Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 92.04

General part information

BMA Connector Receptacle, Male Pin 50 Ohms Through Hole Solder
