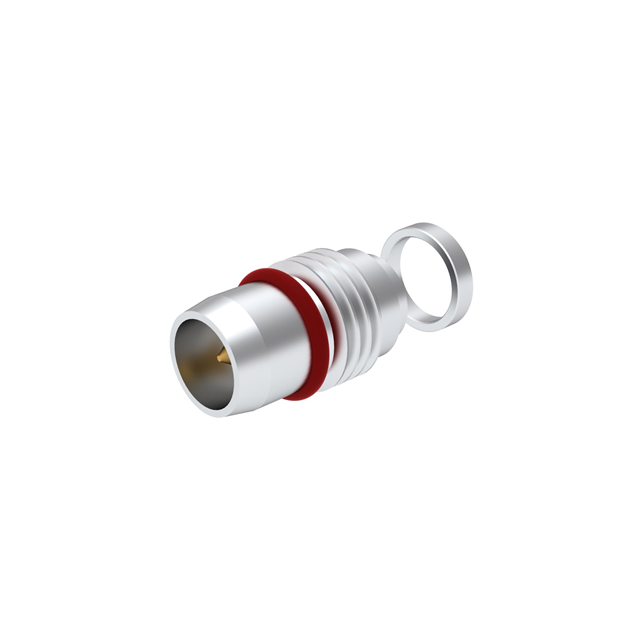

Specification	R128639100

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Hermetically Sealed
Frequency - Max	22 GHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP54
Mating Cycles	1000 cycles
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

R12863 Series

Part	Mating Cycles	Body Finish	Voltage Rating	Dielectric Material	Body Material	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Housing Color	Mounting Type	Fastening Type	Impedance	Connector Style	Contact Termination	Center Contact Material	Number of Ports	Features	Shield Termination	Frequency - Max	Connector Type	Ingress Protection IP Rating	Ingress Protection Description
Radiall USA, Inc. R128639020	1000 cycles	Gold	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	125 °C	-65 °C	Gold	Through Hole	Snap-On	50 Ohm	BMA	Solder	Beryllium Copper	1	Extended Insulation Hermetically Sealed	Solder	22 GHz	Male Pin Receptacle
Radiall USA, Inc. R128639000	1000 cycles	Gold	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	125 °C	-65 °C	Gold	Through Hole	Snap-On	50 Ohm	BMA	Solder	Beryllium Copper	1	Extended Insulation Hermetically Sealed	Solder	22 GHz	Male Pin Receptacle
Radiall USA, Inc. R128639001	1000 cycles		500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	125 °C	-65 °C	Silver	Through Hole	Snap-On	50 Ohm	BMA	Solder	Beryllium Copper	1	Extended Insulation Hermetically Sealed	Solder	22 GHz	Male Pin Receptacle
Radiall USA, Inc. R128639100	1000 cycles		500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	125 °C	-65 °C	Silver	Through Hole	Snap-On	50 Ohm	BMA	Solder	Beryllium Copper	1	Hermetically Sealed	Solder	22 GHz	Male Pin Receptacle	IP54	Dust Protected
