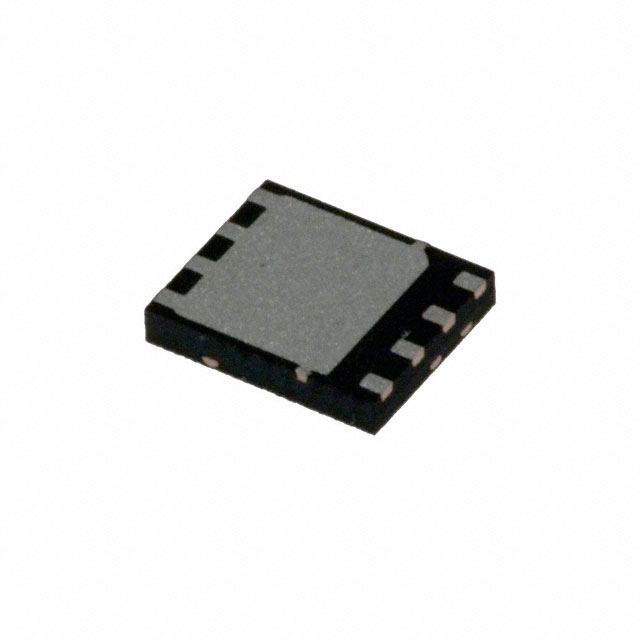

CSD17304Q3
Active30-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 3 MM X 3 MM, 8.8 MOHM 8-VSON-CLIP -55 TO 150
Deep-Dive with AI
Search across all available documentation for this part.
CSD17304Q3
Active30-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 3 MM X 3 MM, 8.8 MOHM 8-VSON-CLIP -55 TO 150
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CSD17304Q3 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 15 A, 56 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 3 V, 8 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 6.6 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 955 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) [Max] | 2.7 W |
| Rds On (Max) @ Id, Vgs | 7.5 mOhm |
| Supplier Device Package | 8-VSON-CLIP (3.3x3.3) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 10 V, -8 V |
| Vgs(th) (Max) @ Id [Max] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 1.09 | |
| 10 | $ 0.73 | |||
| 100 | $ 0.51 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| 2500 | $ 0.34 | |||
| 5000 | $ 0.32 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.84 | |
| 10 | $ 0.69 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.84 | ||
| 10 | $ 0.69 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 2500 | $ 0.35 | ||
| 5000 | $ 0.33 | |||
| 12500 | $ 0.32 | |||
| 25000 | $ 0.32 | |||
| LCSC | N/A | 1 | $ 0.94 | |
| 10 | $ 0.77 | |||
| 30 | $ 0.69 | |||
| 100 | $ 0.61 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.48 | |||
| Mouser Electronics | N/A | 1 | $ 0.97 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.51 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| 2500 | $ 0.34 | |||
| 5000 | $ 0.33 | |||
| 10000 | $ 0.32 | |||
| Quest Components | N/A | 1 | $ 0.71 | |
| 1 | $ 1.12 | |||
| 128 | $ 0.33 | |||
| 604 | $ 0.30 | |||
| 1787 | $ 0.39 | |||
| 3828 | $ 0.34 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.63 | |
| 100 | $ 0.48 | |||
| 250 | $ 0.35 | |||
| 1000 | $ 0.25 | |||
| Win Source Electronics | N/A | 85 | $ 0.61 | |
| 180 | $ 0.57 | |||
| 275 | $ 0.55 | |||
| 395 | $ 0.51 | |||
| 510 | $ 0.49 | |||
| 635 | $ 0.47 | |||
CSD17304 Series
30-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 8.8 mOhm
| Part | Technology | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Power Dissipation (Max) [Max] | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CSD17304Q3 | MOSFET (Metal Oxide) | N-Channel | 3 V, 8 V | 7.5 mOhm | 955 pF | 30 V | -8 V, 10 V | 6.6 nC | 1.8 V | 150 °C | -55 °C | Surface Mount | 2.7 W | 8-VSON-CLIP (3.3x3.3) | 15 A, 56 A | 8-PowerTDFN |
Description
General part information
CSD17304 Series
The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications and optimized for 5V gate drive applications.
The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications and optimized for 5V gate drive applications.
