3609/20 100

Active

3M (TC)

CBL RIBN 20COND 0.025 WHITE FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3609/20 100

Active

3M (TC)

CBL RIBN 20COND 0.025 WHITE FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3609/20 100

Cable Type	Flat Cable
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Length	1 ft, 25 ft
Length	304.8 mm, 7.62 m
Length	Enter Number of Feet in Order Quantity
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	20
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL Style 20726
Ribbon Thickness	0.024 in
Ribbon Thickness	0.61 mm
Ribbon Width [custom]	0.5 "
Ribbon Width [custom]	12.7 mm
Shielding	Unshielded
Spool Size	30.48 m
Spool Size	100 ft
Voltage	150 V
Wire Gauge	30 AWG

3609 Series

Part	Wire Gauge	First Conductor Mark	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Thickness	Ribbon Thickness	Ratings	Shielding	Pitch [x]	Pitch [x]	Conductor Material	Number of Conductors	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Ribbon Width	Ribbon Width	Length [x]	Length [x]	Jacket (Insulation) Material	Insulation Resistance	Length	Length	Spool Size	Spool Size	Ribbon Width [custom]	Ribbon Width [custom]	Length	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 3609/10	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	10	150 V	-55 °C	150 °C	Flat Cable	6.35 mm	0.25 in	100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm
3M (TC) 3609/12 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	12	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	15.24 m 304.8 mm	1 ft 50 ft
3M (TC) 3609/20 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	20	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	7.62 m 304.8 mm	1 ft 25 ft	30.48 m	100 ft	0.5 "	12.7 mm	Enter Number of Feet in Order Quantity
3M (TC) 3609/26 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	26	150 V	-55 °C	155 °C	Flat Cable	16.51 mm	0.65 in	100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	15.24 m 304.8 mm	1 ft 50 ft
3M (TC) 3609/40 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	40	150 V	-55 °C	150 °C	Flat Cable	1 in		100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm								25.4 mm
3M (TC) 3609/60 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	60	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm									38.1 mm	1.5 in
3M (TC) 3609/14	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm		Unshielded	0.64 mm	0.025 in	Copper Silver Coated	14	150 V	-55 °C	150 °C	Flat Cable					Fluorinated Ethylene-Propylene (FEP)	10 GOhm									8.89 mm	0.35 "
3M (TC) 3609/68 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	68	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft							43.18 mm	1.7 in
3M (TC) 3609/16
3M (TC) 3609/50 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	50	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm											1.25 "	31.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 77.20
		1	$ 20.59
		1	$ 290.21
		5	$ 17.06
		5	$ 236.36
		5	$ 63.44
		10	$ 15.68
		10	$ 216.91
		10	$ 58.35
		25	$ 52.06
		25	$ 198.96
		25	$ 14.06
		50	$ 12.93
		50	$ 47.58
		100	$ 43.69
		100	$ 11.85
	Digi-Spool®, Continuous Spool	1	$ 19.15
		2	$ 17.38
		3	$ 16.41
		5	$ 15.26
		7	$ 14.55
		10	$ 13.83
		25	$ 12.14
		50	$ 11.01
		100	$ 9.98
	Spool	100	$ 10.75
		300	$ 9.44
		500	$ 8.59
		1000	$ 8.52

Description

General part information

3609 Series

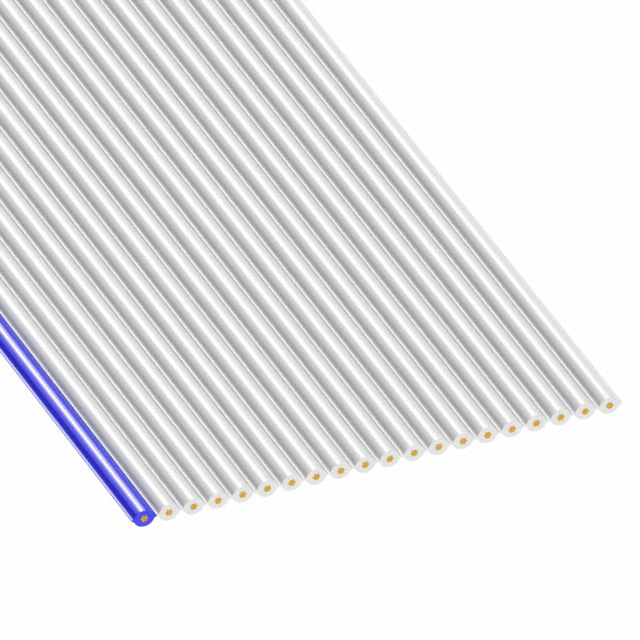

Flat Ribbon Cable White 20 Conductors 0.025" (0.64mm) Flat Cable Enter Number of Feet in Order Quantity
