3609/12 100

Active

3M (TC)

CBL RIBN 12COND 0.025 WHITE 1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

3609/12 100

Active

3M (TC)

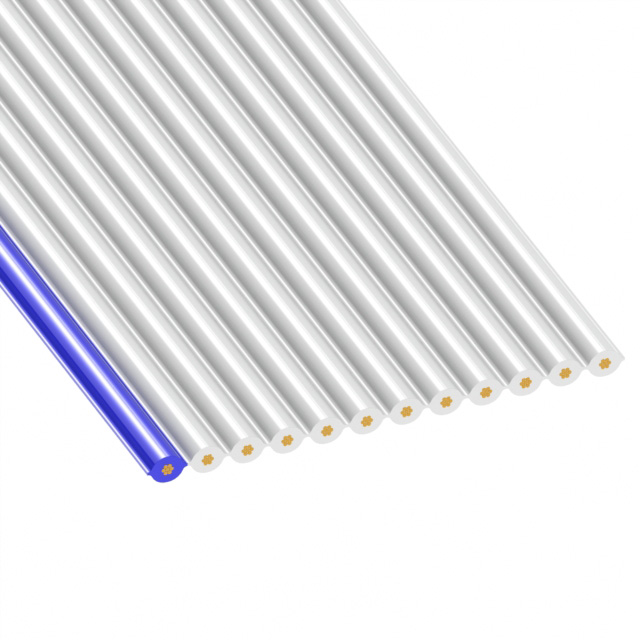

CBL RIBN 12COND 0.025 WHITE 1'

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3609/12 100

Cable Type	Flat Cable
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Length	15.24 m, 304.8 mm
Length	50 ft, 1 ft
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	12
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL Style 20726
Ribbon Thickness	0.024 in
Ribbon Thickness	0.61 mm
Shielding	Unshielded
Voltage	150 V
Wire Gauge	30 AWG

3609 Series

Part	Wire Gauge	First Conductor Mark	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Thickness	Ribbon Thickness	Ratings	Shielding	Pitch [x]	Pitch [x]	Conductor Material	Number of Conductors	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Ribbon Width	Ribbon Width	Length [x]	Length [x]	Jacket (Insulation) Material	Insulation Resistance	Length	Length	Spool Size	Spool Size	Ribbon Width [custom]	Ribbon Width [custom]	Length	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 3609/10	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	10	150 V	-55 °C	150 °C	Flat Cable	6.35 mm	0.25 in	100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm
3M (TC) 3609/12 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	12	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	15.24 m 304.8 mm	1 ft 50 ft
3M (TC) 3609/20 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	20	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	7.62 m 304.8 mm	1 ft 25 ft	30.48 m	100 ft	0.5 "	12.7 mm	Enter Number of Feet in Order Quantity
3M (TC) 3609/26 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	26	150 V	-55 °C	155 °C	Flat Cable	16.51 mm	0.65 in	100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	15.24 m 304.8 mm	1 ft 50 ft
3M (TC) 3609/40 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	40	150 V	-55 °C	150 °C	Flat Cable	1 in		100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm								25.4 mm
3M (TC) 3609/60 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	60	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm									38.1 mm	1.5 in
3M (TC) 3609/14	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm		Unshielded	0.64 mm	0.025 in	Copper Silver Coated	14	150 V	-55 °C	150 °C	Flat Cable					Fluorinated Ethylene-Propylene (FEP)	10 GOhm									8.89 mm	0.35 "
3M (TC) 3609/68 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	68	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft							43.18 mm	1.7 in
3M (TC) 3609/16
3M (TC) 3609/50 100	30 AWG	Blue	7	38 AWG	0.024 in	0.61 mm	UL Style 20726	Unshielded	0.64 mm	0.025 in	Copper Silver Coated	50	150 V	-55 °C	150 °C	Flat Cable			100 ft	30.48 m	Fluorinated Ethylene-Propylene (FEP)	10 GOhm											1.25 "	31.75 mm
