D01-9950642

Obsolete

Harwin Inc.

CONN SOCKET SIP 6POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D01-9950642

Obsolete

Harwin Inc.

CONN SOCKET SIP 6POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D01-9950642	D01-995 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	196.9 µin	196.9 µin
Contact Finish Thickness - Post	5 µm	5 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	-	4 - 16
Number of Positions or Pins (Grid)	-	1 x 12, 1 x 4
Number of Positions or Pins (Grid)	-	1 x 32
Number of Positions or Pins (Grid)	-	32
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Wire Wrap	Wire Wrap
Termination Post Length [x]	0.51 in	0.51 in
Termination Post Length [x]	12.95 mm	12.95 mm
Type	SIP	SIP

D01-995 Series

14 POS. FEMALE SIL VERTICAL WIRE WRAP IC STRIP ROHS COMPLIANT: YES

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Mounting Type	Pitch - Post	Pitch - Post	Contact Finish - Post	Contact Resistance	Contact Material - Mating	Number of Positions or Pins (Grid)	Material Flammability Rating	Contact Material - Post [custom]	Housing Material	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid) [custom]
Harwin Inc. D01-9951442	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	14	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9951242	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	12	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm	1 x 12
Harwin Inc. D01-9950542	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	5	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950842	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	8	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950442	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	4	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm	1 x 4
Harwin Inc. D01-9950642	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper		UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9951642	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	16	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950942	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	9	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9951042	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	10	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950742	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	7	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

D01-995 Series

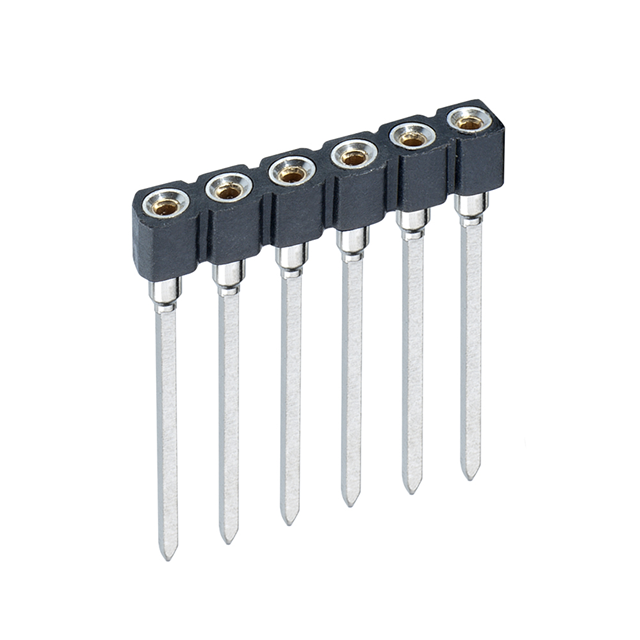

6 (1 x 6) Pos SIP Socket Gold Through Hole

Documents

Technical documentation and resources
