PXPPVC12FIM05BCL010PVC

Active

BULGIN LIMITED

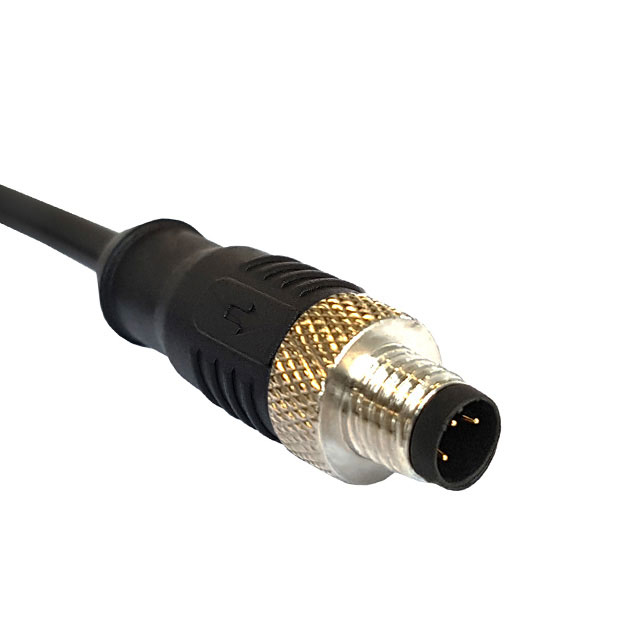

SENSOR CABLE, M12 PLUG, FREE END, 5 POSITIONS, 1 M, 3.3 FT, BUCCANEER M12 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PXPPVC12FIM05BCL010PVC

Active

BULGIN LIMITED

SENSOR CABLE, M12 PLUG, FREE END, 5 POSITIONS, 1 M, 3.3 FT, BUCCANEER M12 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXPPVC12FIM05BCL010PVC

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	B
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

PXPPVC Series

Part	1st Connector Orientation	Cable Type	1st Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Number of Positions	1st Connector Type	1st Connector Gender	Assembly Configuration	Ingress Protection	Usage	Shielding	2nd Connector Type	Color	1st Connector Mounting Type	Cable Material	1st Connector Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Orientation (Convert To)	Orientation (Convert From)	Mounting Type	Shell Size - Insert (Convert From)	Housing Material	Current Rating (Amps)	Convert To (Adapter End)	Convert From (Adapter End)	Features	Number of Positions (Convert From)	Shell Size - Insert (Convert To) [custom]	Voltage Rating	Number of Positions (Convert To)	Number of Positions (Convert To)	Connector Style	1st Connector Orientation [custom]
BULGIN LIMITED PXPPVC08FIM06AYT010PVC	A	Round	All	1 m	3.28 ft	6	Receptacle	Male Pins	Y-Adapter on One End	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC12TSFM12AFBIFB										IP67 - Dust Tight Waterproof		Unshielded						-25 °C	80 C	A	A	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	1.5 A	Male Pins (2)	Female Sockets	Coupling Nut	12	M12	30 VDC	12	2	Distributor T-Shaped
BULGIN LIMITED PXPPVC08FBF08ACL010PVC	A	Round	All	1 m	3.28 ft	8 positions	Plug	Female Sockets	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC12TSFM04AFBIFB										IP67 - Dust Tight Waterproof		Unshielded						-25 °C	80 C	A	A	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	4 A	Male Pins (2)	Female Sockets	Coupling Nut	4	M12	250 VDC	4		Distributor T-Shaped
BULGIN LIMITED PXPPVC08FIM04PCL010PVC		Round	All	1 m	3.28 ft	4	Receptacle	Male Pins	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8																		P
BULGIN LIMITED PXPPVC12RAM08ACL010PVC	A	Round	All	1 m	3.28 ft	8 positions	Receptacle Right Angle	Male Pins	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M12
BULGIN LIMITED PXPPVC12TSFF08AFBBFB										IP67 - Dust Tight Waterproof		Unshielded						-25 °C	80 C	A	A	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	2 A	Female Sockets (2)	Female Sockets	Coupling Nut	8	M12	30 VDC	8	2	Distributor T-Shaped
BULGIN LIMITED PXPPVC08RAF08ACL010PVC	A	Round	All	1 m	3.28 ft	8 positions	Plug Right Angle	Female Sockets	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC08FIM08AYT010PVC	A	Round	All	1 m	3.28 ft	8 positions	Receptacle	Male Pins	Y-Adapter on One End	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC12FIM05BCL010PVC	B	Round	All	1 m	3.28 ft	5	Receptacle	Male Pins	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.77
		10	$ 20.81
		25	$ 19.91
		50	$ 19.27
		100	$ 18.63
Newark	Each	50	$ 22.53
		100	$ 19.88
		250	$ 18.55
		500	$ 18.16

Description

General part information

PXPPVC Series

The M-series Buccaneer circular automation connectors from Bulgin provide an ideal connectivity solution for industrial automation technologies that require fast, secure and reliable connections with a high degree of environmental protection. Featuring a M-style threaded locking nut, Bulgin’s M-series offers an extensive choice of robust industry standard interconnect solutions for automation and control applications including M5 (waterproof), M8, M12, M16 and M23 variants. With A, B, D coded connector variants available throughout the range, Bulgin’s automation connectors are ideal for ensuring consistent and reliable actuator/sensor, fieldbus and Ethernet connections. Designed to decrease downtime and increase production efficiency, M-series provides reliable and uncompromised data, signal and power transmissions for industrial automation systems in harsh environments. These IP67 rated connectors range include field installable connectors, receptacles and overmoulded cable variants.
