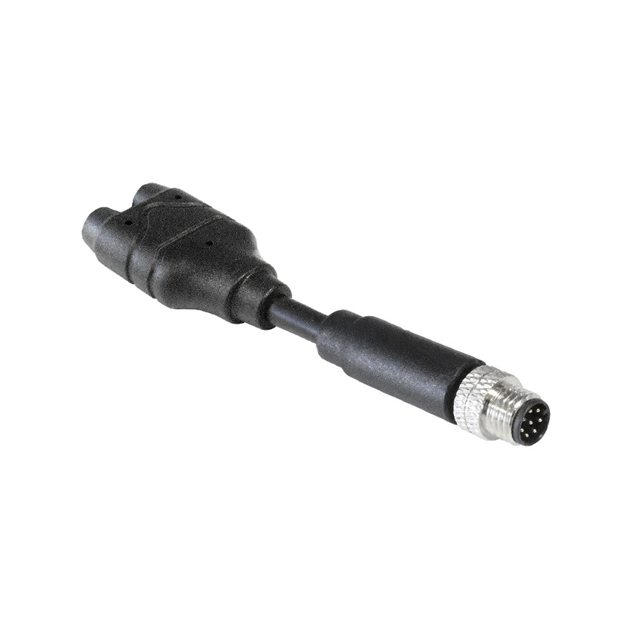

Specification	PXPPVC08FIM08AYT010PVC

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Y-Adapter on One End
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

PXPPVC Series

Part	1st Connector Number of Positions Loaded	Cable Material	Color	Shielding	1st Connector Shell Size - Insert	2nd Connector Type	Assembly Configuration	1st Connector Orientation	1st Connector Mounting Type	1st Connector Number of Positions	Cable Type	Usage	1st Connector Type	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Gender	Length	Features	Convert To (Adapter End)	Convert From (Adapter End) Type	Convert From (Adapter End) Positions	Current Rating	Shell Finish	Mounting Type	Orientation	Termination	Number of Positions	Voltage Rating	Shell Size - Insert	Cable Opening (Max)	Cable Opening (Min)	Shell Material	Fastening Type	Connector Type	Contact Finish - Mating	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Connector Pin Count
BULGIN LIMITED PXPTPU12RAF04DCL150PUR	All	Polyurethane (PUR)	Black	Unshielded	M12	Wire Leads	Standard	D	Free Hanging (In-Line)	4 positions	Round	Industrial Environments	Plug Right Angle	Dust Tight Waterproof	IP67	Female Sockets	49.2 ft
BULGIN LIMITED PXPPVC12RAF05ACL100PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	A	Free Hanging (In-Line)	5 positions	Round	Industrial Environments	Plug Right Angle	Dust Tight Waterproof	IP67	Female Sockets	32.8 ft
BULGIN LIMITED PXPPVC12FIM04ACL100PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	A	Free Hanging (In-Line)	4 positions	Round	Industrial Environments	Receptacle	Dust Tight Waterproof	IP67	Male Pins	32.8 ft
BULGIN LIMITED PXPPVC12RAM05BCL050PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	B	Free Hanging (In-Line)	5 positions	Round	Industrial Environments	Receptacle Right Angle	Dust Tight Waterproof	IP67	Male Pins	16.4 ft
BULGIN LIMITED PXPTPU12FBF12ACL030PUR	All	Polyurethane (PUR)	Black	Unshielded	M12	Wire Leads	Standard	A	Free Hanging (In-Line)	12 positions	Round	Industrial Environments	Plug	Dust Tight Waterproof	IP67	Female Sockets	9.84 ft
BULGIN LIMITED PXMBNI12RAF08XRJM16			Black															Right Angle	8p8c (RJ45) Female Jack Modular	Circular Female Sockets M12	8 Pos
BULGIN LIMITED PXMBNI12FIM04ASCPG7			Silver											Dust Tight Waterproof	IP67			Backshell				4 A	Nickel	Free Hanging (In-Line)	A	Solder Cup	4	250 V	M12-4	0.315 in	0.181 in	Brass	Threaded	Male Pins Receptacle	Gold	Metal	-25 °C	80 °C
BULGIN LIMITED PXPPVC12RAF04DCL030PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	D	Free Hanging (In-Line)	4 positions	Round	Industrial Environments	Plug Right Angle	Dust Tight Waterproof	IP67	Female Sockets	9.84 ft
BULGIN LIMITED PXPTPU12FBF08XRJ020PU			Teal								Round	Cat6a Industrial Environments - IP67					6.56 ft																	8p8c Circular Female to RJ45					8 pos
BULGIN LIMITED PXMBNI05FPM04AFL003	All		Multiple	Unshielded	M5	Wire Leads	Standard	A	Panel Mount	4 positions	Individual	Industrial Environments	Receptacle	Dust Tight Waterproof	IP67	Male Pins	0.98 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PXPPVC08FIM08AYT010PVC | Datasheet
