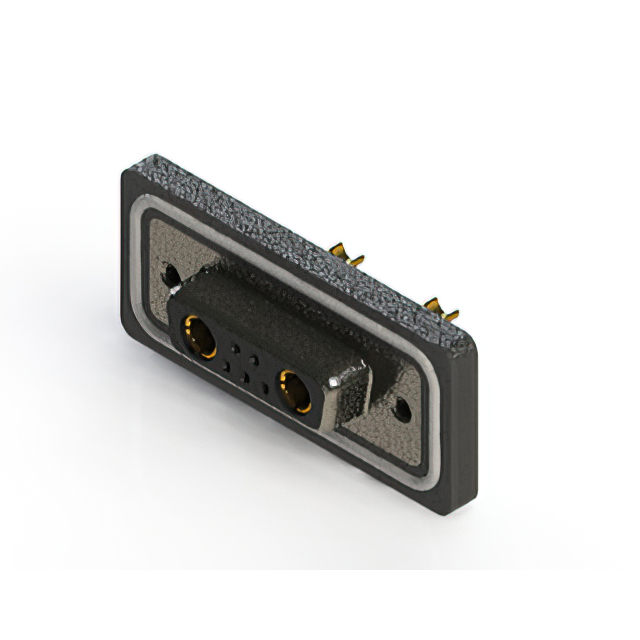

628W7W2-122-2NA

Active

EDAC Inc.

CONN D-SUB RCPT 7P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W7W2-122-2NA

Active

EDAC Inc.

CONN D-SUB RCPT 7P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W7W2-122-2NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Voltage Rating	125 VDC

628-W7W Series

Part	Features	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Shell Material, Finish	Ingress Protection	Shell Size, Connector Layout	Dielectric Material	Connector Style	Flange Feature	Voltage Rating	Color	Number of Rows	Mounting Type	Contact Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Termination	Current Rating (Amps)
EDAC Inc. 628W7W2-122-2NA	Shielded	5 A 20 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628W7W2-222-4NA	Shielded	5 A 40 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy			Flash
EDAC Inc. 628W7W2-624-1N2	Shielded		7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.76 Ám	30 Áin		Solder	10A 5A
EDAC Inc. 628W7W2-124-4N2	Shielded	5 A 40 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin		Solder
EDAC Inc. 628W7W2-122-4NA	Shielded	5 A 40 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628W7W2-124-3NA	Shielded	5 A 30 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin		Solder
EDAC Inc. 628W7W2-322-1NA	Shielded		7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.38 µm	15 µin			10A 5A
EDAC Inc. 628W7W2-122-3NA	Shielded	5 A 30 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628W7W2-122-3N2	Shielded	5 A 30 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628-W7W-220-012		5 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Female Screwlock (4-40) Mating Side		Black	2	Panel Mount Through Hole	Signal and Power	Gold	-55 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy			Flash	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 12.53

Description

General part information

628-W7W Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
