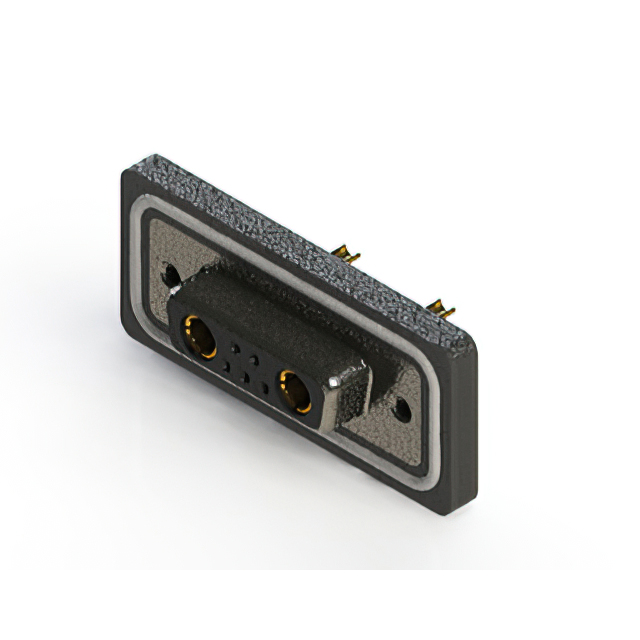

628W7W2-322-1NA

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 7 CONTACT(S), FEMALE, 0.109 INCH PITCH, SOLDER TERMINAL, M3, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W7W2-322-1NA

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 7 CONTACT(S), FEMALE, 0.109 INCH PITCH, SOLDER TERMINAL, M3, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W7W2-322-1NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Voltage Rating	125 VDC

628-W7W Series

Part	Features	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Shell Material, Finish	Ingress Protection	Shell Size, Connector Layout	Dielectric Material	Connector Style	Flange Feature	Voltage Rating	Color	Number of Rows	Mounting Type	Contact Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Termination	Current Rating (Amps)
EDAC Inc. 628W7W2-122-2NA	Shielded	5 A 20 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628W7W2-222-4NA	Shielded	5 A 40 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy			Flash
EDAC Inc. 628W7W2-624-1N2	Shielded		7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.76 Ám	30 Áin		Solder	10A 5A
EDAC Inc. 628W7W2-124-4N2	Shielded	5 A 40 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin		Solder
EDAC Inc. 628W7W2-122-4NA	Shielded	5 A 40 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628W7W2-124-3NA	Shielded	5 A 30 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin		Solder
EDAC Inc. 628W7W2-322-1NA	Shielded		7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.38 µm	15 µin			10A 5A
EDAC Inc. 628W7W2-122-3NA	Shielded	5 A 30 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (M3)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628W7W2-122-3N2	Shielded	5 A 30 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Black	2	Panel Mount Through Hole	Signal and Power	Gold	-25 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy	0.127 µm	5 µin
EDAC Inc. 628-W7W-220-012		5 A	7	2	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2 (DA A) - 7W2	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	Female Screwlock (4-40) Mating Side		Black	2	Panel Mount Through Hole	Signal and Power	Gold	-55 °C	85 °C	UL94 V-0	Receptacle Female Sockets	Copper Alloy			Flash	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 14.48

Description

General part information

628-W7W Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
