Specification	AON2405

Current - Continuous Drain (Id) (Ta)	8 A
Drain to Source Voltage (Vdss)	20 V
Drive Voltage (Max Rds On)	1.5 V
Drive Voltage (Min Rds On)	4.5 V
FET Type	P-Channel
Gate Charge (Max)	18 nC
Input Capacitance (Ciss) (Max)	1025 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C

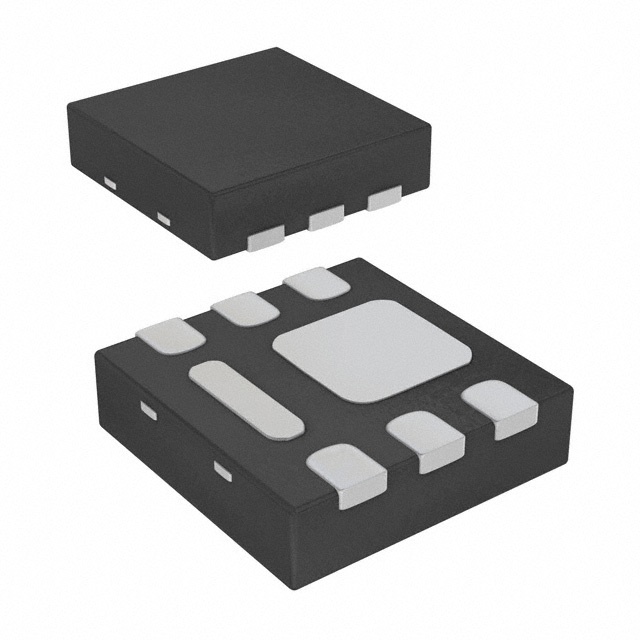

Package / Case	6-UDFN Exposed Pad
Package Length	2 mm
Package Name	6-DFN
Package Width	2 mm
Power Dissipation (Max)	2.8 W
Rds On (Max)	32 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	8 V
Vgs(th) (Max)	900 mV

AON24 Series

Part	Vgs(th) (Max)	FET Type	Gate Charge (Max)	Vgs (Max)	Technology	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	Drive Voltage (Min Rds On)	Drive Voltage (Max Rds On)	Drain to Source Voltage (Vdss)	Mounting Type	Package / Case	Power Dissipation (Max)	Input Capacitance (Ciss) (Max)	Rds On (Max)	Current - Continuous Drain (Id) (Ta)
Alpha & Omega Semiconductor Inc. AON2405	900 mV	P-Channel	18 nC	8 V	MOSFET (Metal Oxide)	-55 °C	150 °C	2 mm	6-DFN	2 mm	4.5 V	1.5 V	20 V	Surface Mount	6-UDFN Exposed Pad	2.8 W	1025 pF	32 mOhm	8 A
Alpha & Omega Semiconductor Inc. AON2400	750 mV	N-Channel	16 nC	5 V	MOSFET (Metal Oxide)	-55 °C	150 °C	2 mm	6-DFN	2 mm	2.5 V	1.2 V	8 V	Surface Mount	6-UDFN Exposed Pad	2.8 W	1645 pF	11 mOhm	8 A
Alpha & Omega Semiconductor Inc. AON2406	1 V	N-Channel	18 nC	8 V	MOSFET (Metal Oxide)	-55 °C	150 °C	2 mm	6-DFN	2 mm	4.5 V	1.5 V	20 V	Surface Mount	6-UDFN Exposed Pad	2.8 W	1140 pF	12.5 mOhm	8 A
