LMX2434 Series

Part	Mounting Type	Output Ratio	Input Ratio	Multiplier	Divider	Operating Temperature (Min)	Operating Temperature (Max)	Type	Package Length	Package Name	Package Width	Frequency - Max	Frequency - Max	PLL	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output	Differential Input	Differential Output	Number of Circuits	Input	Package / Case	For Use With/Related Products	Supplied Contents	Frequency	Frequency	Utilized IC / Part	Contents
Texas Instruments LMX2434TMX/NOPB	Surface Mount	2	3	No	No	-40 °C	85 °C	PLL Frequency Synthesizer	0.173 in	20-TSSOP	4.4 mm	2.5GHz 5GHz	2.5 GHz 5 GHz	Yes with Bypass	2.25 V	2.75 V	CMOS	Yes	No	1	CMOS
Texas Instruments LMX2434SLEX/NOPB	Surface Mount	2	3	No	No	-40 °C	85 °C	PLL Frequency Synthesizer	3.5 mm	20-TCSP	3.5 mm	2.5GHz 5GHz	2.5 GHz 5 GHz	Yes with Bypass	2.25 V	2.75 V	CMOS	Yes	No	1	CMOS	20-WFQFN

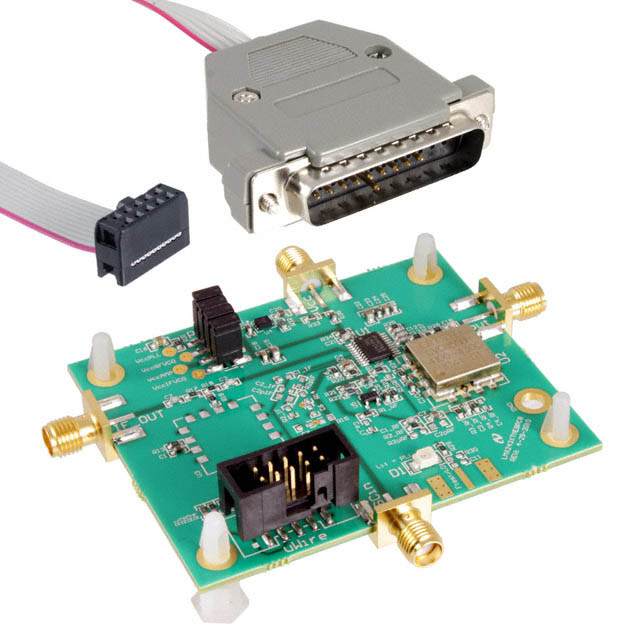

Texas Instruments LMX2434EVAL/NOPB								Frequency Synthesizer															LMX2434	Board(s)	2.5GHz 5GHz	2.5 GHz 5 GHz	LMX2434	Board
Texas Instruments LMX2434TM/NOPB	Surface Mount	2	3	No	No	-40 °C	85 °C	PLL Frequency Synthesizer	0.173 in	20-TSSOP	4.4 mm	2.5GHz 5GHz	2.5 GHz 5 GHz	Yes with Bypass	2.25 V	2.75 V	CMOS	Yes	No	1	CMOS
Texas Instruments LMX2434SLEX/NOPB	Surface Mount	2	3	No	No	-40 °C	85 °C	PLL Frequency Synthesizer	3.5 mm	20-ULGA	3.5 mm	2.5GHz 5GHz	2.5 GHz 5 GHz	Yes with Bypass	2.25 V	2.75 V	CMOS	Yes	No	1	CMOS	20-UFLGA
