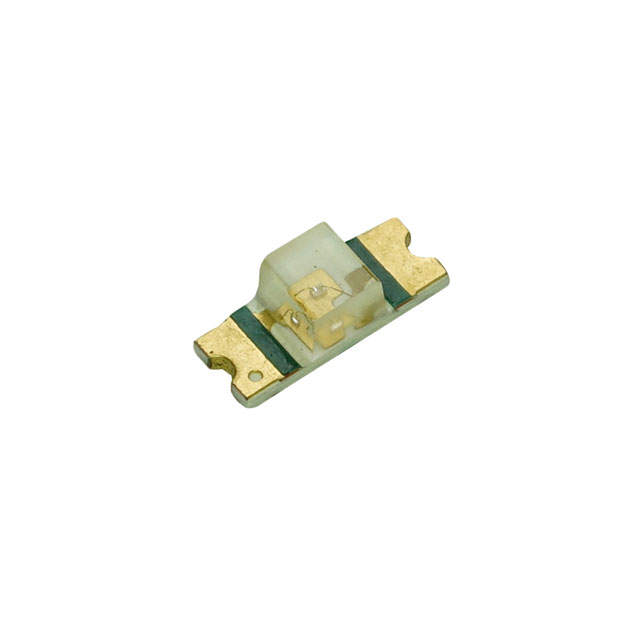

QBLP655R-IB

Active

QT Brightek (QTB)

LED BLUE CLR 1205 SMD BOTTOM ENT

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED BLUE CLR 1205 SMD BOTTOM ENT

Technical Specifications

Parameters and characteristics commom to parts in this series

LED BLUE CLR 1205 SMD BOTTOM ENT

Part	Color	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Wavelength - Dominant	Configuration	Current - Test	Lens Transparency	Millicandela Rating	Lens Size	Mounting Type	Package / Case	Lens Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
QT Brightek (QTB) QBLP655R-IB	Blue	1205	3.2 mm	1.2 mm	Square with Flat Top	470 nm	Standard	20 mA	Clear	60 mcd	1.2 mm	Surface Mount, Bottom Entry	2-SMD, No Lead	Colorless	140 °	3.1 V	1.2 mm
QT Brightek (QTB) QBLP655R-RGB	Blue, Green, Red	1205	3.2 mm	1.2 mm	Square with Flat Top	470 nm, 520 nm, 623 nm	Common Anode		Clear		1.2 mm	Surface Mount, Bottom Entry	4-SMD, No Lead	Colorless	140 °		1.2 mm	95 mcd	90 mcd	450 mcd	3.1 V	3.1 V	2 V	20 mA	20 mA	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 470nm LED Indication - Discrete 3.1V 2-SMD, No Lead
