QBLP655R-RGB

Active

QT Brightek (QTB)

LED RGB CLEAR 1205 SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB CLEAR 1205 SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBLP655R-RGB	QBLP655 Series

Color	Red, Green, Blue	Blue, Red, Green
Configuration	Common Anode	Standard, Common Anode
Current - Test	-	20 mA
Current - Test [custom]	20 mA	20 mA
Current - Test [custom]	20 mA	20 mA
Current - Test [custom]	20 mA	20 mA
Height (Max) [Max]	1.2 mm	1.2 mm
Lens Color	Colorless	Colorless
Lens Size	1.2 mm	1.2 mm
Lens Style	Square with Flat Top	Square with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	-	60 mcd
Millicandela Rating [custom]	95 mcd	95 mcd
Millicandela Rating [custom]	90 mcd	90 mcd
Millicandela Rating [custom]	450 mcd	450 mcd
Mounting Type	Surface Mount, Bottom Entry	Surface Mount, Bottom Entry
Package / Case	4-SMD, No Lead	2-SMD, No Lead, 4-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	1.2 mm	1.2 mm
Supplier Device Package	1205	1205
Viewing Angle	140 °	140 °
Voltage - Forward (Vf) (Typ)	-	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	2 V	2 V
Wavelength - Dominant	623 nm, 520 nm, 470 nm	470 - 623 nm

LED BLUE CLR 1205 SMD BOTTOM ENT

Part	Color	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Wavelength - Dominant	Configuration	Current - Test	Lens Transparency	Millicandela Rating	Lens Size	Mounting Type	Package / Case	Lens Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
QT Brightek (QTB) QBLP655R-IB	Blue	1205	3.2 mm	1.2 mm	Square with Flat Top	470 nm	Standard	20 mA	Clear	60 mcd	1.2 mm	Surface Mount, Bottom Entry	2-SMD, No Lead	Colorless	140 °	3.1 V	1.2 mm
QT Brightek (QTB) QBLP655R-RGB	Blue, Green, Red	1205	3.2 mm	1.2 mm	Square with Flat Top	470 nm, 520 nm, 623 nm	Common Anode		Clear		1.2 mm	Surface Mount, Bottom Entry	4-SMD, No Lead	Colorless	140 °		1.2 mm	95 mcd	90 mcd	450 mcd	3.1 V	3.1 V	2 V	20 mA	20 mA	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

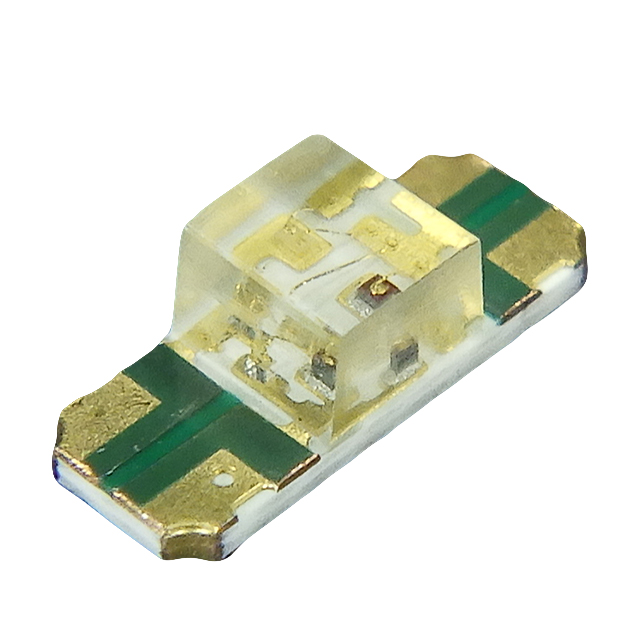

Red, Green, Blue (RGB) 623nm Red, 520nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.1V Green, 3.1V Blue 4-SMD, No Lead
