Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 26.78 | |
| 10 | $ 23.45 | |||
| 25 | $ 22.43 | |||
| 50 | $ 21.71 | |||
| 100 | $ 20.99 | |||
| 250 | $ 19.83 | |||
| 500 | $ 19.25 | |||
| Retail Package | 1 | $ 28.39 | ||
General part information

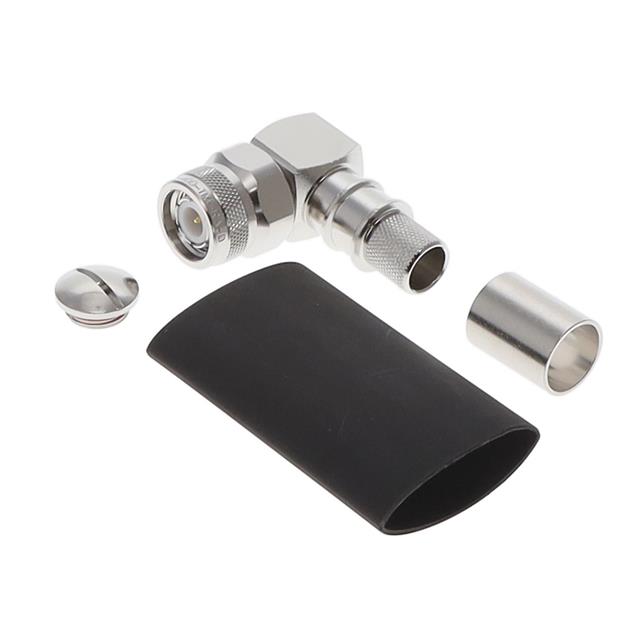

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | TC-400-TM-RA-D | TC-400 Series |
|---|---|---|
| Body Finish | White Bronze | White Bronze, Nickel, Silver |
| Body Material | Brass | Brass, Stainless Steel |
| Cable Group | LMR-400 | LMR-400, LMR-400-75 |
| Center Contact Material | Brass | Brass, Phosphor Bronze, Beryllium Copper |
| Center Contact Plating | Gold | Gold, Silver |
| Connector Style | TNC | HN Type, N Type, BNC, RP-TNC, 7/16 DIN, RP-N Type, TNC, QN, SMA, Mini, UHF, QDS, 4.3/10 |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) |
| Fastening Type | - | Bayonet Lock, Snap-On |
| Frequency - Max [Max] | 11 GHz | 1 - 6000 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Insertion Loss | - | 0.05 - 0.15 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 75 - 165 °C |
| Operating Temperature [Min] | -55 °C | -65 - -5 °C |
| Shield Termination | Crimp | Crimp, Clamp |
| Voltage Rating | 500 V | 500 - 5000 V |
HN-MALE (PLUG) CRIMP RIGHT ANGLE
| Part | Body Finish | Connector Type | Connector Style | Center Contact Plating | Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Shield Termination | Center Contact Material | Number of Ports | Contact Termination | Dielectric Material | Frequency - Max [Max] | Mounting Type | Mating Cycles | Cable Group | Housing Color | Fastening Type | Voltage Rating | Mounting Feature | Ingress Protection | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems TC-400-HNM-RA | White Bronze | Male Pin, Plug | HN Type | Gold | 50 Ohms | 155 °C | -55 °C | Brass | Crimp | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | 3 GHz | Free Hanging (In-Line), Right Angle | 500 | LMR-400 | Silver | |||||
Amphenol Times Microwave Systems TC-400-NMC-2 | Nickel | Male Pin, Plug | N Type | Gold | 50 Ohms | 75 ░C | -5 °C | Clamp | 1 | Solder | 2.5 GHz | Free Hanging (In-Line) | LMR-400 | Silver | |||||||||
Amphenol Times Microwave Systems TC-400-NM-75/50 | Nickel | Male Pin, Plug | N Type | Gold | 50 Ohms | 85 °C | -40 °C | Brass | Crimp | 1 | Solder | Polytetrafluoroethylene (PTFE) | 2 GHz | Free Hanging (In-Line) | LMR-400-75 | Silver | |||||||
Amphenol Times Microwave Systems TC-400-BM-75-X | White Bronze | Male Pin, Plug | BNC | Gold | 75 Ohms | 125 °C | -55 °C | Brass | Crimp | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | 2 GHz | Free Hanging (In-Line) | 500 | LMR-400-75 | Silver | Bayonet Lock | 500 V | |||
Amphenol Times Microwave Systems TC-400-HNM | Silver | Male Pin, Plug | HN Type | Silver | 50 Ohms | 85 °C | -40 °C | Brass | Clamp | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | 1 GHz | Free Hanging (In-Line) | LMR-400 | Silver | 5000 V | |||||
Amphenol Times Microwave Systems TC-400-TM-RP | Nickel | Female Socket, Plug | RP-TNC | Gold | 50 Ohms | 125 °C | -55 °C | Brass | Crimp | Phosphor Bronze | 1 | Solder | Polytetrafluoroethylene (PTFE) | 4 GHz | Free Hanging (In-Line) | 500 | LMR-400 | Silver | 500 V | ||||
Amphenol Times Microwave Systems TC-400-NFC-BH (A) | White Bronze | Female Socket, Jack | N Type | Gold | 50 Ohms | 165 °C | -65 ░C | Brass | Clamp | Beryllium Copper | 1 | Solder | Polytetrafluoroethylene (PTFE) | 11 GHz | LMR-400 | Silver | Bulkhead - Front Side Nut | ||||||
Amphenol Times Microwave Systems TC-400-TM-RP-RA-D | White Bronze | Jack, Male Pin | RP-TNC | Gold | 50 Ohms | 85 °C | -40 °C | Crimp | 1 | Solder | 6000 MHz | Free Hanging (In-Line), Right Angle | LMR-400 | Silver | |||||||||
Amphenol Times Microwave Systems TC-400-716M-X | White Bronze | Male Pin, Plug | 7/16 DIN | Gold | 50 Ohms | 85 °C | -40 °C | Brass | Crimp | Beryllium Copper | 1 | Solder | Polytetrafluoroethylene (PTFE) | 6000 MHz | Free Hanging (In-Line) | LMR-400 | Silver | IP67 - Dust Tight, Waterproof | 0.05 dB | ||||
Amphenol Times Microwave Systems TC-400-NMH-RA-D | White Bronze | Male Pin, Plug | N Type | Gold | 50 Ohms | 155 °C | -55 °C | Brass | Crimp | Brass | 1 | Solder | Polytetrafluoroethylene (PTFE) | 11 GHz | Free Hanging (In-Line), Right Angle | 500 | LMR-400 | Silver | 1000 VDC |
