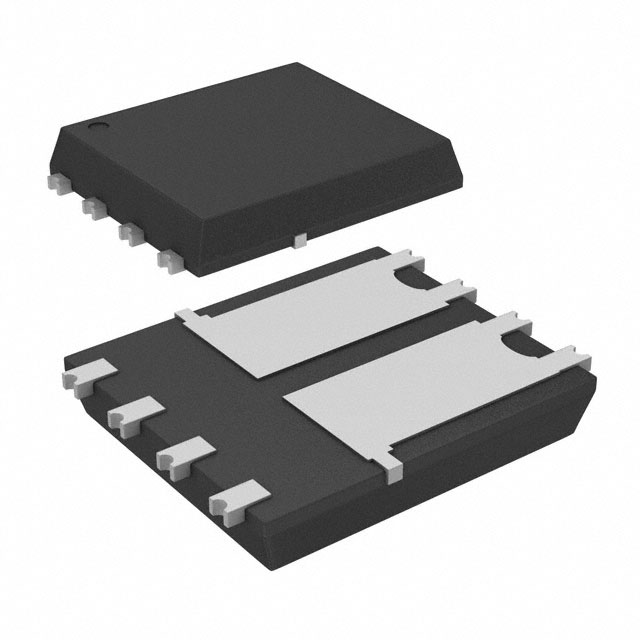

IPG20N04S4L08AATMA1

Active

Infineon Technologies

INFINEON’S IPG20N04S4L-08A DUAL N-CHANNEL LOGIC LEVEL MOSFET, AEC Q101 QUALIFIED, ROHS COMPLIANT, 175°C MAX TEMP. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Search across all available documentation for this part.

IPG20N04S4L08AATMA1

Active

Infineon Technologies

INFINEON’S IPG20N04S4L-08A DUAL N-CHANNEL LOGIC LEVEL MOSFET, AEC Q101 QUALIFIED, ROHS COMPLIANT, 175°C MAX TEMP. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPG20N04S4L08AATMA1

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	20 A
Drain to Source Voltage (Vdss)	40 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs [Max]	39 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	3050 pF
Mounting Type	Wettable Flank, Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power - Max [Max]	54 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	8.2 mOhm
Supplier Device Package	PG-TDSON-8-10
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.2 V

IPG20N Series

Part	Technology	FET Feature	Drain to Source Voltage (Vdss)	Grade	Current - Continuous Drain (Id) @ 25°C	Power - Max [Max]	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Vgs(th) (Max) @ Id	Mounting Type	Qualification	Configuration	Vgs(th) (Max) @ Id [Max]	Rds On (Max) @ Id, Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]
Infineon Technologies IPG20N06S2L35ATMA1	MOSFET (Metal Oxide)	Logic Level Gate	55 V	Automotive	20 A	65 W	PG-TDSON-8-4	23 nC	-55 °C	175 ░C	35 mOhm	790 pF	8-PowerVDFN	2 V	Surface Mount	AEC-Q101	2 N-Channel (Dual)
Infineon Technologies IPG20N06S2L50ATMA1	MOSFET (Metal Oxide)	Logic Level Gate	55 V		20 A	51 W	PG-TDSON-8-4	17 nC	-55 °C	175 ░C			8-PowerVDFN		Surface Mount		2 N-Channel (Dual)	2 V	50 mOhm	560 pF
Infineon Technologies IPG20N06S3L-35	MOSFET (Metal Oxide)	Logic Level Gate	55 V		20 A	30 W	PG-TDSON-8-4	23 nC	-55 °C	175 ░C	35 mOhm	1730 pF	8-PowerVDFN		Surface Mount		2 N-Channel (Dual)
Infineon Technologies IPG20N04S4L07ATMA1	MOSFET (Metal Oxide)	Logic Level Gate	40 V	Automotive	20 A	65 W	PG-TDSON-8-4		-55 °C	175 ░C		3980 pF	8-PowerVDFN	2.2 V	Surface Mount	AEC-Q101	2 N-Channel (Dual)		7.2 mOhm		50 nC
Infineon Technologies IPG20N06S2L65AUMA1
Infineon Technologies IPG20N04S4L08ATMA1	MOSFET (Metal Oxide)	Logic Level Gate	40 V	Automotive	20 A	54 W	PG-TDSON-8-4		-55 °C	175 ░C	8.2 mOhm	3050 pF	8-PowerVDFN	2.2 V	Surface Mount	AEC-Q101	2 N-Channel (Dual)				39 nC
Infineon Technologies IPG20N10S436AATMA1	MOSFET (Metal Oxide)		100 V	Automotive	20 A	43 W	PG-TDSON-8-10	15 nC	-55 °C	175 ░C	36 mOhm	990 pF	8-PowerVDFN	3.5 V	Surface Mount Wettable Flank	AEC-Q101	2 N-Channel (Dual)
Infineon Technologies IPG20N04S4L08AATMA1	MOSFET (Metal Oxide)	Logic Level Gate	40 V	Automotive	20 A	54 W	PG-TDSON-8-10		-55 °C	175 ░C	8.2 mOhm	3050 pF	8-PowerVDFN	2.2 V	Surface Mount Wettable Flank	AEC-Q101	2 N-Channel (Dual)				39 nC
Infineon Technologies IPG20N04S412AATMA1	MOSFET (Metal Oxide)		40 V	Automotive	20 A	41 W	PG-TDSON-8-10		-55 °C	175 ░C	12.2 mOhm	1470 pF	8-PowerVDFN	4 V	Surface Mount Wettable Flank	AEC-Q101	2 N-Channel (Dual)				18 nC
Infineon Technologies IPG20N04S408ATMA1	MOSFET (Metal Oxide)		40 V		20 A	65 W	PG-TDSON-8-4		-55 °C	175 ░C	7.6 mOhm	2940 pF	8-PowerVDFN	4 V	Surface Mount		2 N-Channel (Dual)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.58
		10	$ 1.29
		100	$ 1.01
		500	$ 0.85
		1000	$ 0.69
		2000	$ 0.65
	Digi-Reel®	1	$ 1.58
		10	$ 1.29
		100	$ 1.01
		500	$ 0.85
		1000	$ 0.69
		2000	$ 0.65
	Tape & Reel (TR)	5000	$ 0.59

Description

General part information

IPG20N Series

Mosfet Array 40V 20A 54W Surface Mount, Wettable Flank PG-TDSON-8-10

Documents

Technical documentation and resources

No documents available
