DAC8541 Series

Part	Settling Time	Supplied Contents	Contents	DAC Type	Number of DAC's	Utilized IC / Part	Data Interface	Number of Bits	Differential Output	Reference Type	Package Width	Package Name	Package Length	Number of D/A Converters	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	INL/DNL (LSB) (Max)	Output Type	Architecture	Package / Case

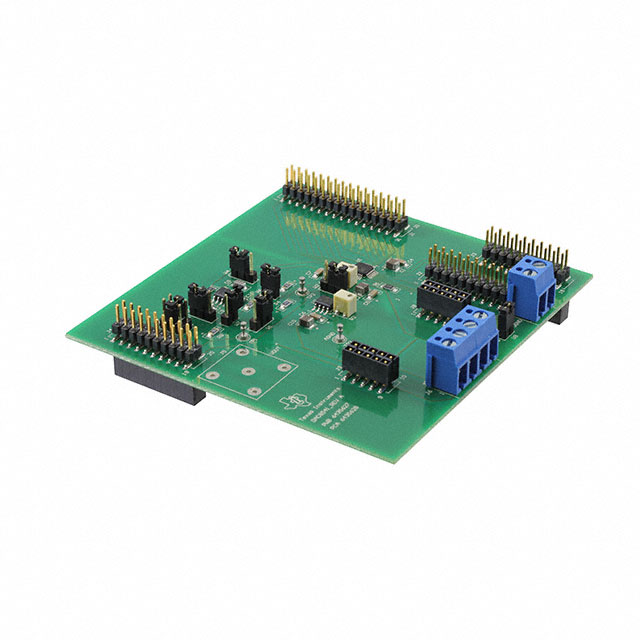

Texas Instruments DAC8541EVM	8 µs	Board(s)	Board	Voltage	1	DAC8541	Parallel	16 bits
Texas Instruments DAC8541Y/2K	10 µs						Parallel	16 bits	No	External	5 mm	32-TQFP	5 mm	1 count	2.7 V	5.5 V	Surface Mount	-40 °C	85 °C	5.5 V	1.8 V	1 LSB	Voltage - Buffered	String DAC	32-TQFP
Texas Instruments DAC8541Y/250	10 µs						Parallel	16 bits	No	External	5 mm	32-TQFP	5 mm	1 count	2.7 V	5.5 V	Surface Mount	-40 °C	85 °C	5.5 V	1.8 V	1 LSB	Voltage - Buffered	String DAC	32-TQFP
Texas Instruments DAC8541Y/250G4	10 µs						Parallel	16 bits	No	External	5 mm	32-TQFP	5 mm	1 count	2.7 V	5.5 V	Surface Mount	-40 °C	85 °C	5.5 V	1.8 V	1 LSB	Voltage - Buffered	String DAC	32-TQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
