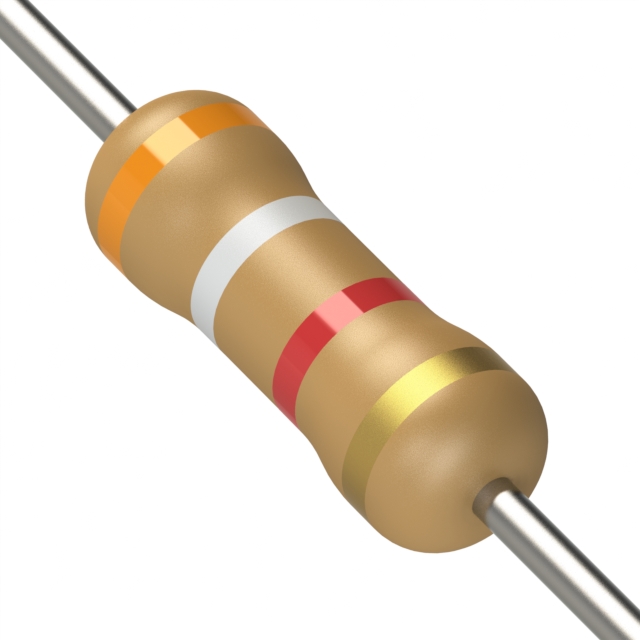

CF1/2C392J
ActiveKOA Speer Electronics, Inc.
RES 3.9K OHM 5% 1/2W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF1/2C392J
ActiveKOA Speer Electronics, Inc.
RES 3.9K OHM 5% 1/2W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF1/2C392J |
|---|---|
| Composition | Carbon Film |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 3.9 kOhms |
| Size / Dimension [diameter] | 3 mm |
| Size / Dimension [diameter] | 0.118 in |
| Size / Dimension [x] | 0.335 " |
| Size / Dimension [x] | 8.5 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient [Max] | 350 ppm/°C |
| Temperature Coefficient [Min] | -450 ppm/°C |
| Tolerance | 5 % |
CF1/2 Series
| Part | Resistance | Power (Watts) | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Temperature Coefficient [Max] | Temperature Coefficient [Min] | Package / Case | Composition | Number of Terminations | Tolerance | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KOA Speer Electronics, Inc. | 82 Ohms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 560 Ohms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 5.1 Ohms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 430 kOhms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | -700 ppm/°C | 0 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 160 Ohms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 3.9 kOhms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 470 kOhms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | -700 ppm/°C | 0 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 150 Ohms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 270 Ohms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
KOA Speer Electronics, Inc. | 3.9 kOhms | 0.5 W | 0.5 W | 155 °C | -55 °C | Axial | 350 ppm/°C | -450 ppm/°C | Axial | Carbon Film | 2 | 5 % | 3 mm | 0.335 " | 0.118 in | 8.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.14 | |
| 10 | $ 0.09 | |||
| 25 | $ 0.07 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.06 | |||
| 250 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| 5000 | $ 0.03 | |||
| 10000 | $ 0.02 | |||
Description
General part information
CF1/2 Series
3.9 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film
