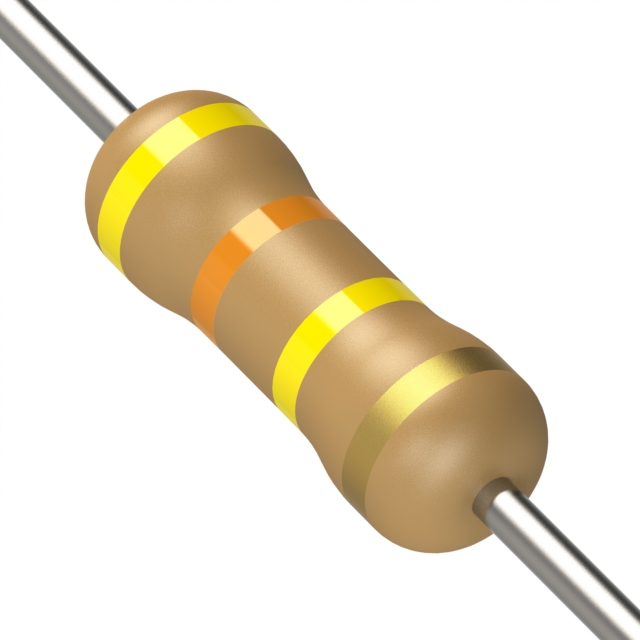

CF1/2CT52R434J

Active

KOA Speer Electronics, Inc.

RES 430K OHM 5% 1/2W AXIAL

CF1/2CT52R434J

Active

KOA Speer Electronics, Inc.

RES 430K OHM 5% 1/2W AXIAL

Description Specifications Series Pricing CAD Documents

Description

General part information

CF1/2 Series

430 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film

Technical Specifications

Parameters and characteristics for this part

Specification	CF1/2CT52R434J

Composition	Carbon Film
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Axial
Package Name	Axial
Power (Watts)	500 mW
Power (Watts) Options	1/2W
Resistance	430 kOhm
Size / Dimension Diameter	0.118 in
Size / Dimension Length	0.335 in
Temperature Coefficient (Highest)	0 ppm/°C
Temperature Coefficient (Lowest)	-700 ppm/°C
Tolerance	5 %

CF1/2 Series

Part	Package / Case	Package Name	Composition	Power (Watts)	Power (Watts) Options	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Resistance	Size / Dimension Diameter	Size / Dimension Length	Number of Terminations	Temperature Coefficient (Lowest)	Temperature Coefficient (Highest)	Temperature Coefficient (Positive)	Temperature Coefficient (Negative)
KOA Speer Electronics, Inc. CF1/2CT52R184J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	180 kOhm	0.118 in	0.335 in	2	-700 ppm/°C	0 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R201J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	200 Ohm	0.118 in	0.335 in	2	-450 ppm/°C	350 ppm/°C	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R820J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	82 Ohm	0.118 in	0.335 in	2	-450 ppm/°C	350 ppm/°C	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R561J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	560 Ohm	0.118 in	0.335 in	2	-450 ppm/°C	350 ppm/°C	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R5R1J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	5.1 Ohm	0.118 in	0.335 in	2	-450 ppm/°C	350 ppm/°C	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R434J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	430 kOhm	0.118 in	0.335 in	2	-700 ppm/°C	0 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R161J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	160 Ohm	0.118 in	0.335 in	2	-450 ppm/°C	350 ppm/°C	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R331J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	330 Ohm	0.118 in	0.335 in	2	-450 ppm/°C	350 ppm/°C	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CF1/2C392J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	3.9 kOhm	0.118 in	0.335 in	2	-450 ppm/°C	350 ppm/°C	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CF1/2CT52R474J	Axial	Axial	Carbon Film	500 mW	1/2W	5 %	155 °C	-55 °C	470 kOhm	0.118 in	0.335 in	2	-700 ppm/°C	0 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CF1/2CT52R434J | Datasheet
