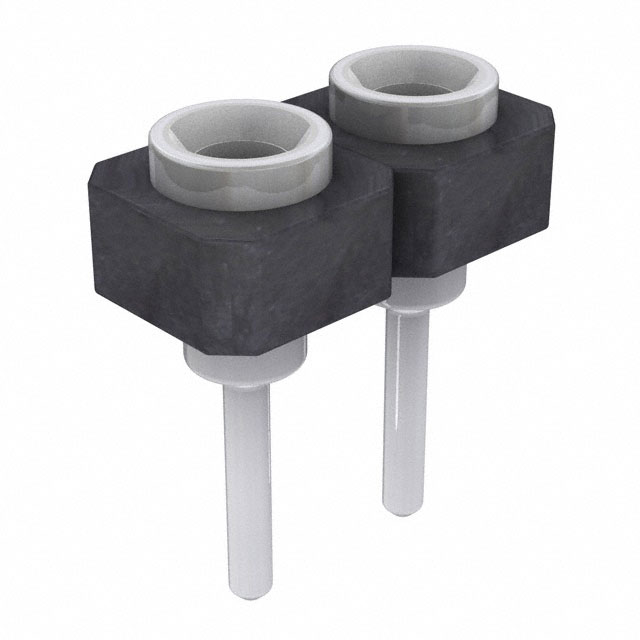

SDL-101-TT-11
ActiveSamtec Inc.
CONN RCPT 2POS TIN PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDL-101-TT-11
ActiveSamtec Inc.
CONN RCPT 2POS TIN PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDL-101-TT-11 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.108 in |
| Contact Length - Post | 2.75 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.132 in |
| Insulation Height | 3.35 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
SDL-101 Series
| Part | Connector Type | Insulation Height [z] | Insulation Height [z] | Insulation Material | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Fastening Type | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Positions | Contact Material | Termination | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Receptacle | 0.095 in | 2.41 mm | Liquid Crystal Polymer (LCP) | Gold | 2.41 mm | 0.095 in | 2 | 2.54 mm | 0.1 in | All | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | Black | 30 Áin | 0.76 Ám | Through Hole | 2 | Beryllium Copper | Solder | |||||||
Samtec Inc. | Receptacle | Liquid Crystal Polymer (LCP) | 2 | 2.54 mm | 0.1 in | All | Female Socket | -55 °C | 105 ░C | Circular | Push-Pull | Black | Through Hole | 2 | Beryllium Copper | Solder | 0.132 in | 3.35 mm | 0.108 in | 2.75 mm | Tin | |||||||||
Samtec Inc. | Receptacle | Liquid Crystal Polymer (LCP) | Gold | 2 | 2.54 mm | 0.1 in | All | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | Black | 30 Áin | 0.76 Ám | Through Hole | 2 | Beryllium Copper | Solder | 0.122 in | 3.1 mm | 0.108 in | 2.75 mm | |||||||
Samtec Inc. | Receptacle | 0.095 in | 2.41 mm | Liquid Crystal Polymer (LCP) | 2.41 mm | 0.095 in | 2 | 2.54 mm | 0.1 in | All | Female Socket | -55 °C | 105 ░C | Circular | Push-Pull | Black | Through Hole | 2 | Beryllium Copper | Solder | Tin | |||||||||
Samtec Inc. | Receptacle | 0.095 in | 2.41 mm | Liquid Crystal Polymer (LCP) | Gold | 2.41 mm | 0.095 in | 2 | 2.54 mm | 0.1 in | All | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | Black | 30 Áin | 0.76 Ám | Through Hole | 2 | Beryllium Copper | Solder | Gold | 10 çin | 0.25 çm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.44 | |
| 10 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.22 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.18 | |||
Description
General part information
SDL-101 Series
2 Position Receptacle Connector Through Hole Tin
