Description Specifications Series Pricing CAD Documents

Description

General part information

395-130 Series

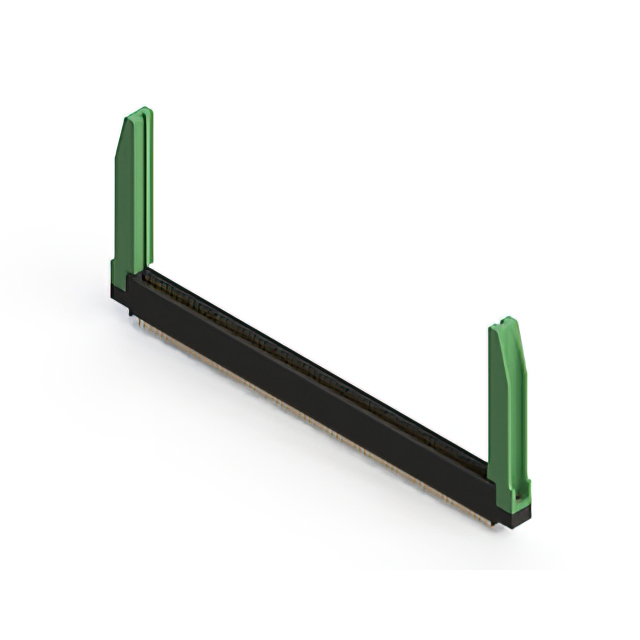

130 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	395-130-525-578

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	65, 130
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

395-130 Series

...

Part	Contact Finish Thickness	Card Type	Termination	Contact Type	Gender	Number of Positions	Mounting Type	Pitch	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Read Out	Flange Feature Diameter	Flange Feature	Card Thickness (Min)	Card Thickness (Max)	Color	Contact Finish	Number of Rows	Termination Rows	Material - Insulation	Features
EDAC Inc. 395-130-559-504	10 Ąin	Dual Edge Non Specified	Solder	Cantilever	Female	65 130	Right Angle Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	Top Mount Opening Unthreaded	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic
EDAC Inc. 395-130-523-278	10 Ąin	Dual Edge Non Specified	Solder	Cantilever	Female	65 130	Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual		4-40 Flush Mount Threaded Insert Top Opening	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-130-523-203	10 Ąin	Dual Edge Non Specified	Solder	Cantilever	Female	65 130	Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual	0.116 in	Floating Bobbin Flush Mount	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic
EDAC Inc. 395-130-555-878	10 Ąin	Dual Edge Non Specified	Solder Eyelet(s)	Cantilever	Female	65 130	Board Edge Straddle Mount	0.1 in	Copper Alloy	-40 °C	105 °C	Dual		4-40 Threaded Insert Top Mount Opening	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic	Card Extender Card Guides
EDAC Inc. 395-130-541-878	10 Ąin	Dual Edge Non Specified	Wire Wrap	Cantilever	Female	65 130	Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual		4-40 Threaded Insert Top Mount Opening	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-130-525-578	10 Ąin	Dual Edge Non Specified	Solder	Cantilever	Female	65 130	Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual		4-40 Threaded Insert Top Mount Opening	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-130-560-212	10 Ąin	Dual Edge Non Specified	Solder	Cantilever	Female	65 130	Board Edge Straddle Mount	0.1 in	Copper Alloy	-40 °C	105 °C	Dual	0.128 in	Flush Mount Side Opening Unthreaded	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 395-130-544-503	10 Ąin	Dual Edge Non Specified	Wire Wrap	Cantilever	Female	65 130	Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual	0.116 in	Floating Bobbin Top Mount Opening	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic
EDAC Inc. 395-130-540-278	10 Ąin	Dual Edge Non Specified	Wire Wrap	Cantilever	Female	65 130	Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual		4-40 Flush Mount Threaded Insert Top Opening	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-130-544-288	10 Ąin	Dual Edge Non Specified	Wire Wrap	Cantilever	Female	65 130	Through Hole	0.1 in	Copper Alloy	-40 °C	105 °C	Dual		4-40 Flush Mount Threaded Insert Top Opening	0.054 in	0.07 in	Black	Gold	2	2 rows	Polyester Thermoplastic	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

395-130-525-578 | Datasheet
