395-130-540-278
ActiveEDAC Inc.

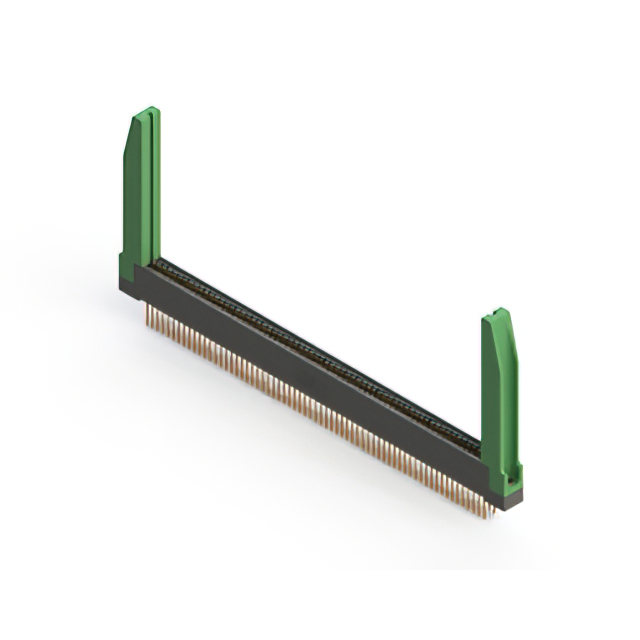

CONN EDGE DUAL FML 130POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-130-540-278
ActiveEDAC Inc.
CONN EDGE DUAL FML 130POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-130-540-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 130 |
| Number of Positions/Bay/Row [custom] | 65 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
395-130 Series
...
| Part | Contact Material | Gender | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Pitch [x] | Pitch [x] | Number of Positions | Material - Insulation | Read Out | Termination Rows | Card Type | Number of Positions/Bay/Row [custom] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Female | Through Hole Right Angle | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | |
EDAC Inc. | Copper Alloy | Female | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | Card Guides | ||
EDAC Inc. | Copper Alloy | Female | Board Edge Straddle Mount | 4-40 Threaded Insert Top Mount Opening | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | |||
EDAC Inc. | Copper Alloy | Female | Through Hole | 4-40 Threaded Insert Top Mount Opening | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | Card Guides | ||
EDAC Inc. | Copper Alloy | Female | Through Hole | 4-40 Threaded Insert Top Mount Opening | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | Card Guides | ||
EDAC Inc. | Copper Alloy | Female | Board Edge Straddle Mount | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | Card Extender |
EDAC Inc. | Copper Alloy | Female | Through Hole | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | |
EDAC Inc. | Copper Alloy | Female | Board Edge Straddle Mount | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | Card Extender |
EDAC Inc. | Copper Alloy | Female | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | Card Guides | ||
EDAC Inc. | Copper Alloy | Female | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2.54 mm | 0.1 in | 130 | Polyester Thermoplastic | Dual | 2 | Non Specified - Dual Edge | 65 | Cantilever | -40 °C | 105 ░C | 2 | Black | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 18.33 | |
Description
General part information
395-130 Series
130 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
