CGPT-2.4/1.2-4-SP

Active

TE Connectivity Raychem Cable Protection

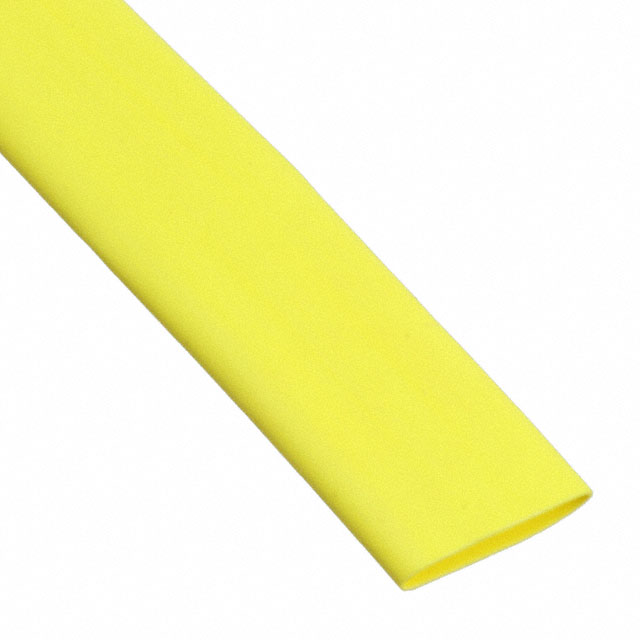

HEATSHRINK 0.094" X 1M YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

CGPT-2.4/1.2-4-SP

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.094" X 1M YELLOW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CGPT-2.4/1.2-4-SP

Color	Yellow
Inner Diameter - Recovered [diameter]	0.047 in
Inner Diameter - Recovered [diameter]	1.19 mm
Inner Diameter - Supplied [diameter]	2.4 mm
Inner Diameter - Supplied [diameter]	0.094 in
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.5 mm
Recovered Wall Thickness	0.019 "
Shelf Life	144 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	80 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

RAYCHEM CGPT Series

Part	Type	Color	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life Start	Features	Material	Shelf Life	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Spool Size	Spool Size	Length	Length	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness
TE Connectivity Raychem Cable Protection CGPT-2.4/1.2-0-SP	Tubing Flexible	Black	80 °C	35 °C	0 °C	0.047 in	1.19 mm	2 to 1	2.4 mm	0.094 in	135 °C	-40 °C	1 m	3.28 ft	0.02 in	0.51 mm	Date of Manufacture	Chemical Resistant Flame Retardant Solvent Resistant	Polyolefin (PO)	144 Months
TE Connectivity Raychem Cable Protection CGPT-12/4-9-SP	Tubing Flexible	White	80 °C			0.157 in	3.99 mm		11.99 mm	0.472 in	135 °C	-40 °C	1 m	3.28 ft	0.029 in	0.74 mm	Date of Manufacture		Polyolefin (PO)	144 Months	1	3
TE Connectivity Raychem Cable Protection CGPT-3.2/1.6-9-SP	Tubing Flexible	White	80 °C	35 °C	0 °C	0.062 in	1.57 mm	2 to 1	3.18 mm	0.125 "	135 °C	-40 °C			0.019 "	0.48 mm	Date of Manufacture	Chemical Resistant Flame Retardant Solvent Resistant	Polyolefin (PO)	144 Months			Enter Number of Meters in Order Quantity	1200 m	3937 ft
TE Connectivity Raychem Cable Protection CGPT-1.2/0.6-X-SP	Tubing Flexible	Clear	80 °C			0.024 in	0.61 mm	2 to 1	1.19 mm	0.047 in	135 °C	-40 °C	1 m	3.28 ft	0.018 in	0.46 mm	Date of Manufacture		Polyolefin (PO)	144 Months
TE Connectivity Raychem Cable Protection CGPT-9.5/4.8-2-SP	Tubing Flexible	Red	80 °C	35 °C	0 °C	0.187 in	4.75 mm	2 to 1	9.53 mm	0.375 in	135 °C	-40 °C	1 m	3.28 ft	0.026 "	0.66 mm	Date of Manufacture	Flame Retardant	Polyolefin (PO)	144 Months						150 m	492.1 ft
TE Connectivity Raychem Cable Protection CGPT-6/2-X-SP	Tubing Flexible	Clear	80 °C	35 °C	0 °C				5.99 mm	0.236 in	135 °C	-40 °C	1 m	3.28 ft	0.026 "	0.66 mm	Date of Manufacture	Chemical Resistant Solvent Resistant	Polyolefin (PO)	144 Months	1	3						0.079 in	2.01 mm
TE Connectivity Raychem Cable Protection CGPT-2.4/1.2-4-SP	Tubing Flexible	Yellow	80 °C			0.047 in	1.19 mm	2 to 1	2.4 mm	0.094 in	135 °C	-40 °C	1 m	3.28 ft	0.019 "	0.5 mm	Date of Manufacture		Polyolefin (PO)	144 Months
TE Connectivity Raychem Cable Protection CGPT-24/8-X-SP						0.315 in	8 mm		24 mm	0.945 "	135 °C	-40 °C			0.04 in	1.02 mm		Chemical Resistant Flame Retardant Solvent Resistant			1	3
TE Connectivity Raychem Cable Protection CGPT-24/8-0-SP	Tubing Flexible	Black	80 °C	35 °C	0 °C	0.315 in	8 mm		24 mm	0.945 "	135 °C	-40 °C	1 m	3.28 ft	0.039 in	0.99 mm	Date of Manufacture		Polyolefin (PO)	144 Months	1	3
TE Connectivity Raychem Cable Protection CGPT-9/3-0-SP	Tubing Flexible	Black	80 °C	35 °C	0 °C	0.118 in	2.99 mm		8.99 mm	0.354 in	135 °C	-40 °C				0.76 mm	Date of Manufacture	Chemical Resistant Flame Retardant Solvent Resistant	Polyolefin (PO)	144 Months	1	3	Enter Number of Meters in Order Quantity	150 m	492.1 '					0.03 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3600	$ 0.69

Description

General part information

RAYCHEM CGPT Series

Heat Shrink Tubing, Flexible 0.094" (2.40mm) 2 to 1 Yellow 3.28' (1.00m)

Documents

Technical documentation and resources

No documents available
