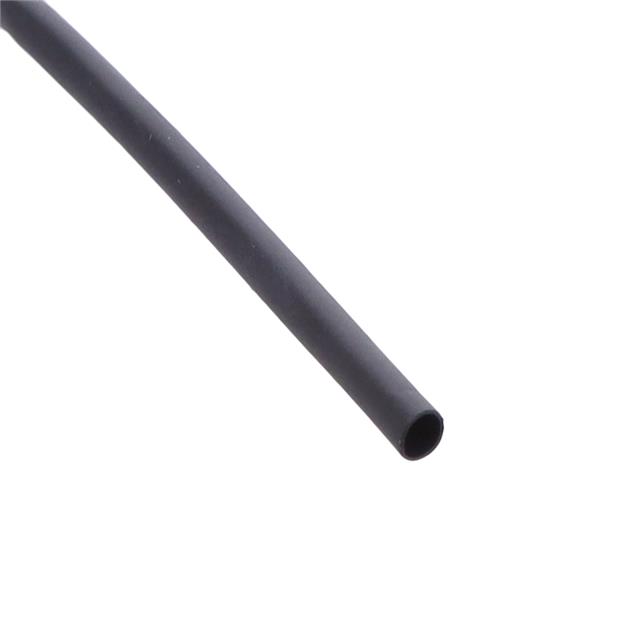

Specification	CGPT-2.4/1.2-0-SP

Color	Black
Features	Flame Retardant, Chemical Resistant, Solvent Resistant
Inner Diameter - Recovered	0.047 in
Inner Diameter - Supplied	0.094 in
Length	3.28 ft
Material	Polyolefin (PO)
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-40 °C
Recovered Wall Thickness	0.019 in
Shelf Life	144 Months
Shrink Temperature	80 °C
Shrinkage Ratio	2
Storage/Refrigeration Temperature (Maximum)	95 °F
Storage/Refrigeration Temperature (Minimum)	32 °F
Type	Flexible, Tubing

RAYCHEM CGPT Series

...

Part	Features	Recovered Wall Thickness	Inner Diameter - Recovered	Material	Inner Diameter - Supplied	Shrinkage Ratio	Operating Temperature (Max)	Operating Temperature (Min)	Length	Shelf Life	Color	Length	Storage/Refrigeration Temperature (Maximum)	Storage/Refrigeration Temperature (Minimum)	Type	Shrink Temperature	Shelf Life Start
TE Connectivity AMP Connectors CGPT-2.4/1.2-0-SP	Chemical Resistant Flame Retardant Solvent Resistant	0.019 in 0.02 in	0.047 in	Polyolefin (PO)	0.094 in	2	135 °C	-40 °C	3.28 ft	144 Months	Black	Enter Number of Meters in Order Quantity	95 °F	32 °F	Flexible Tubing	80 °C	Date of Manufacture
TE Connectivity AMP Connectors CGPT-4.8/2.4-0-STK		0.005 in	0.094 in	Polyolefin (PO)	0.187 in	2	135 °C	-40 °C		144 Months	Black		95 °F	32 °F	Flexible Tubing	80 °C
TE Connectivity AMP Connectors CGPT-1.2/0.6-4-SP		0.018 in	0.024 in	Irradiated Polyolefin (PO)	0.046 in	2	135 °C	-40 °C		144 Months	Yellow		95 °F	32 °F	Flexible Tubing	80 °C
TE Connectivity AMP Connectors CGPT-38/19-1-SP		0.039 in	0.748 in	Irradiated Polyolefin (PO)	1.496 in	2	135 °C	-40 °C		144 Months	Brown		95 °F	32 °F	Flexible Tubing	80 °C
TE Connectivity AMP Connectors CGPT-12/4-6-SP
TE Connectivity AMP Connectors CGPT-25.4/12.7-X-SP
TE Connectivity AMP Connectors CGPT-3.2/1.6-0-30MM	Flame Retardant	0.02 in	0.063 in	Irradiated Polyolefin (PO)	0.126 in	2	135 °C	-40 °C	0.098 ft	144 Months	Black		95 °F	32 °F	Flexible Tubing	80 °C
TE Connectivity AMP Connectors CGPT-25.4/12.7-0-SP	Chemical Resistant Flame Retardant Solvent Resistant		0.5 in	Polyolefin (PO)	1 in	2	135 °C	-40 °C	196.8 ft	144 Months	Black		95 °F	32 °F	Flexible Tubing	80 °C
TE Connectivity AMP Connectors CGPT-51/26-4-SP		0.045 in	1 in	Irradiated Polyolefin (PO)	2 in	2	135 °C	-40 °C		144 Months	Yellow		95 °F	32 °F	Flexible Tubing	80 °C
TE Connectivity AMP Connectors CGPT-38/19-4-SP		0.039 in	0.748 in	Polyolefin (PO)	1.496 in	2	135 °C	-40 °C		144 Months	Yellow				Flexible Tubing	80 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

cgpt-tubing

Application Specification for General Purpose Single Wall Heat Shrink Tubing

CGPT Sleeving

Datasheet

ENG_CD_CGPT_2_to_1_RATIO_STANDARD_SIZES_B.pdf

Datasheet
