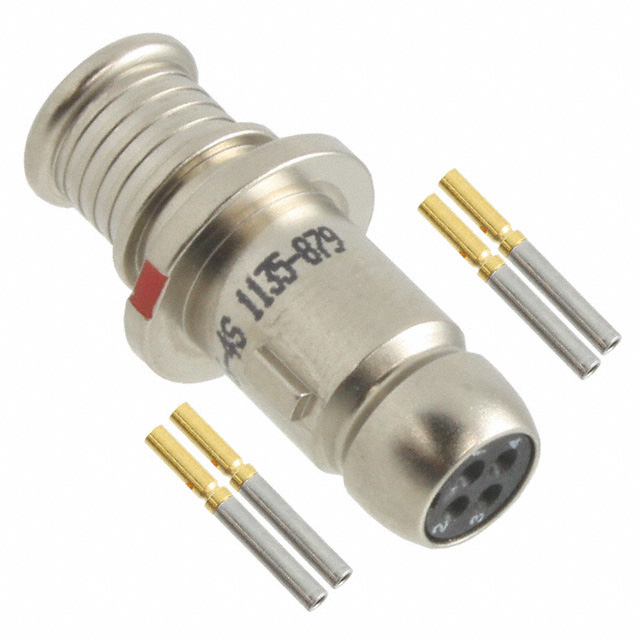

MKJ4A6F6-4S
ActiveITT Cannon, LLC
CONN PLUG FMALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
MKJ4A6F6-4S
ActiveITT Cannon, LLC
CONN PLUG FMALE 4POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MKJ4A6F6-4S |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 6 |
| Shell Size - Insert [Min] | 4 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 500 VAC |
MKJ4A Series
| Part | Termination | Connector Type | Contact Finish - Mating | Contact Material | Shell Material | Fastening Type | Color | Shell Size - Insert | Shielding | Shell Finish | Insert Material | Mounting Type | Applications | Ingress Protection | Orientation | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Positions | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Crimp | Male Pins Receptacle | Gold | Copper Alloy | Aluminum Alloy | Push-Pull | Black | 5-3 | Shielded | Black Zinc Nickel | Thermoplastic | Free Hanging (In-Line) | Aerospace Communication Systems Industrial Instrumentation Medical | Environment Resistant | N | Metal | 1.27 µm | 50 µin | 5 A | -65 ░C | 347 °F | ||||
ITT Cannon, LLC | Crimp | Male Pins Receptacle | Gold | Copper Alloy | Aluminum Alloy | Push-Pull | Olive Drab | Shielded | Olive Drab Cadmium | Thermoplastic | Free Hanging (In-Line) | Aerospace Communication Systems Industrial Instrumentation Medical | Environment Resistant | D | Metal | 5 A | -55 °C | 150 °C | 500 VAC | 10 | |||||
ITT Cannon, LLC | Crimp | Male Pins Plug | Gold | Copper Alloy | Aluminum Alloy | Push-Pull | Olive Drab | Shielded | Olive Drab Cadmium | Thermoplastic | Free Hanging (In-Line) | Aerospace Communication Systems Industrial Instrumentation Medical | Environment Resistant | A | Metal | 5 A | -55 °C | 150 °C | 500 VAC | 19 | 19 | 9 | |||
ITT Cannon, LLC | Crimp | Male Pins Receptacle | Gold | Copper Alloy | Aluminum Alloy | Push-Pull | Olive Drab | Shielded | Olive Drab Cadmium | Thermoplastic | Free Hanging (In-Line) | Aerospace Communication Systems Industrial Instrumentation Medical | Environment Resistant | A | Metal | 5 A | -55 °C | 150 °C | 500 VAC | 10 | |||||
ITT Cannon, LLC | Crimp | Male Pins Receptacle | Gold | Copper Alloy | Aluminum Alloy | Push-Pull | Olive Drab | Shielded | Olive Drab Cadmium | Thermoplastic | Free Hanging (In-Line) | Aerospace Communication Systems Industrial Instrumentation Medical | Environment Resistant | C | Metal | 5 A | -55 °C | 150 °C | 500 VAC | 19 | 19 | 9 | |||
ITT Cannon, LLC | Crimp | Male Pins Plug | Gold | Aluminum Alloy | Push-Pull | Shielded | Electroless Nickel | Free Hanging (In-Line) | Environment Resistant | N | Metal | 1.27 µm | 50 µin | 5 A | -55 °C | 150 °C | 500 VAC | 19 | 19 | 9 | |||||
ITT Cannon, LLC | Crimp | Receptacle Female Sockets | Gold | Aluminum Alloy | Push-Pull | Olive Drab | Shielded | Olive Drab Cadmium | Free Hanging (In-Line) | Environment Resistant | N | Metal | 1.27 µm | 50 µin | 5 A | -55 °C | 150 °C | 500 VAC | 7 | 7 | 6 | ||||
ITT Cannon, LLC | Crimp | Male Pins Plug | Gold | Copper Alloy | Aluminum Alloy | Push-Pull | Silver | Shielded | Electroless Nickel | Thermoplastic | Free Hanging (In-Line) | Aerospace Communication Systems Industrial Instrumentation Medical | Environment Resistant | A | Metal | 5 A | -55 °C | 150 °C | 500 VAC | 6 | 6 | 6 | |||
ITT Cannon, LLC | Crimp | Female Sockets Plug | Gold | Aluminum Alloy | Push-Pull | Shielded | Electroless Nickel | Free Hanging (In-Line) | Environment Resistant | N | Metal | 1.27 µm | 50 µin | 5 A | -55 °C | 150 °C | 500 VAC | 4 | 6 | 4 | |||||
ITT Cannon, LLC | Crimp | Receptacle Female Sockets | Gold | Copper Alloy | Aluminum Alloy | Push-Pull | Olive Drab | Shielded | Olive Drab Cadmium | Thermoplastic | Free Hanging (In-Line) | Aerospace Communication Systems Industrial Instrumentation Medical | Environment Resistant | D | Metal | 5 A | -55 °C | 150 °C | 500 VAC | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 84.15 | |
Description
General part information
MKJ4A Series
4 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
No documents available
