MKJ4A6F9-19P

Active

ITT Cannon, LLC

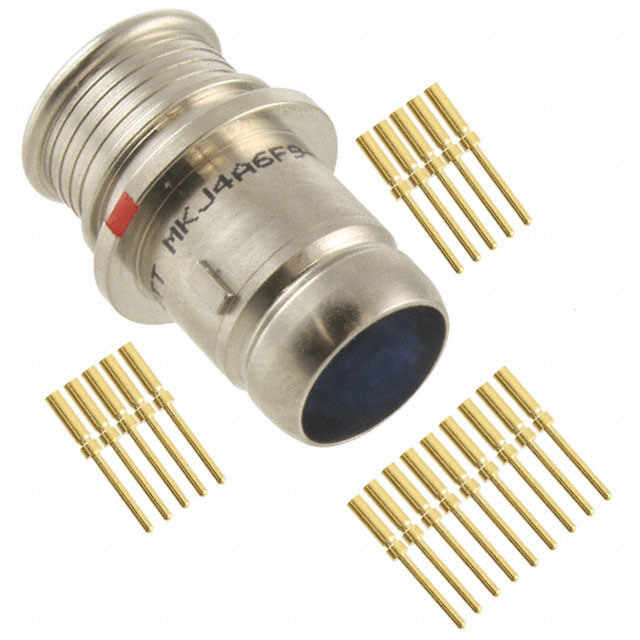

CIRCULAR CONNECTOR, MKJ4 SERIES, CABLE MOUNT PLUG, 19 CONTACTS, CRIMP PIN, ALUMINUM ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

MKJ4A6F9-19P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MKJ4 SERIES, CABLE MOUNT PLUG, 19 CONTACTS, CRIMP PIN, ALUMINUM ALLOY BODY

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MKJ4A6F9-19P

Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	9
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

MKJ4A Series

Part	Termination	Connector Type	Contact Finish - Mating	Contact Material	Shell Material	Fastening Type	Color	Shell Size - Insert	Shielding	Shell Finish	Insert Material	Mounting Type	Applications	Ingress Protection	Orientation	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]
ITT Cannon, LLC MKJ4A1Z5-3P	Crimp	Male Pins Receptacle	Gold	Copper Alloy	Aluminum Alloy	Push-Pull	Black	5-3	Shielded	Black Zinc Nickel	Thermoplastic	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	Environment Resistant	N	Metal	1.27 µm	50 µin	5 A	-65 ░C	347 °F
ITT Cannon, LLC MKJ4A1W7-10PD	Crimp	Male Pins Receptacle	Gold	Copper Alloy	Aluminum Alloy	Push-Pull	Olive Drab		Shielded	Olive Drab Cadmium	Thermoplastic	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	Environment Resistant	D	Metal			5 A	-55 °C	150 °C	500 VAC	10
ITT Cannon, LLC MKJ4A6W9-19PA	Crimp	Male Pins Plug	Gold	Copper Alloy	Aluminum Alloy	Push-Pull	Olive Drab		Shielded	Olive Drab Cadmium	Thermoplastic	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	Environment Resistant	A	Metal			5 A	-55 °C	150 °C	500 VAC	19	19	9
ITT Cannon, LLC MKJ4A1W7-10PA	Crimp	Male Pins Receptacle	Gold	Copper Alloy	Aluminum Alloy	Push-Pull	Olive Drab		Shielded	Olive Drab Cadmium	Thermoplastic	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	Environment Resistant	A	Metal			5 A	-55 °C	150 °C	500 VAC	10
ITT Cannon, LLC MKJ4A1W9-19PC	Crimp	Male Pins Receptacle	Gold	Copper Alloy	Aluminum Alloy	Push-Pull	Olive Drab		Shielded	Olive Drab Cadmium	Thermoplastic	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	Environment Resistant	C	Metal			5 A	-55 °C	150 °C	500 VAC	19	19	9
ITT Cannon, LLC MKJ4A6F9-19P	Crimp	Male Pins Plug	Gold		Aluminum Alloy	Push-Pull			Shielded	Electroless Nickel		Free Hanging (In-Line)		Environment Resistant	N	Metal	1.27 µm	50 µin	5 A	-55 °C	150 °C	500 VAC	19	19	9
ITT Cannon, LLC MKJ4A1W6-7S	Crimp	Receptacle Female Sockets	Gold		Aluminum Alloy	Push-Pull	Olive Drab		Shielded	Olive Drab Cadmium		Free Hanging (In-Line)		Environment Resistant	N	Metal	1.27 µm	50 µin	5 A	-55 °C	150 °C	500 VAC	7	7	6
ITT Cannon, LLC MKJ4A6F6-6PA	Crimp	Male Pins Plug	Gold	Copper Alloy	Aluminum Alloy	Push-Pull	Silver		Shielded	Electroless Nickel	Thermoplastic	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	Environment Resistant	A	Metal			5 A	-55 °C	150 °C	500 VAC	6	6	6
ITT Cannon, LLC MKJ4A6F6-4S	Crimp	Female Sockets Plug	Gold		Aluminum Alloy	Push-Pull			Shielded	Electroless Nickel		Free Hanging (In-Line)		Environment Resistant	N	Metal	1.27 µm	50 µin	5 A	-55 °C	150 °C	500 VAC	4	6	4
ITT Cannon, LLC MKJ4A1W7-10SD	Crimp	Receptacle Female Sockets	Gold	Copper Alloy	Aluminum Alloy	Push-Pull	Olive Drab		Shielded	Olive Drab Cadmium	Thermoplastic	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	Environment Resistant	D	Metal			5 A	-55 °C	150 °C	500 VAC	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.84
Newark	Each	25	$ 128.20
		50	$ 121.03
		100	$ 119.24

Description

General part information

MKJ4A Series

19 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
