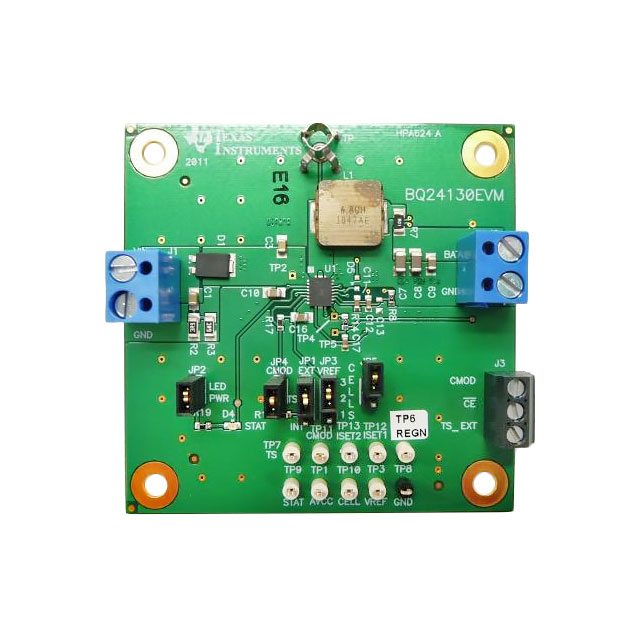

BQ24130EVM
ActiveEVAL MODULE FOR BQ24130
Deep-Dive with AI
Search across all available documentation for this part.
BQ24130EVM
ActiveEVAL MODULE FOR BQ24130
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24130EVM | BQ24130 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Battery Pack Voltage | - | 12.6 V |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Number of Cells | - | 3 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 20-VFQFN Exposed Pad |
| Primary Attributes | Cell Li-Ion/ Li-Pol | Cell Li-Ion/ Li-Pol |
| Primary Attributes | 3, 1, 2 Inputs | 1 - 3 |
| Primary Attributes [Max] | 4 A, 17 V | 4 - 17 A |
| Primary Attributes [Min] | 4.5 V | 4.5 V |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-VQFN (3.5x4.5) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24130 | BQ24130 |
| Voltage - Supply (Max) | - | 17 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Box | 1 | $ 123.75 | |
| Digikey | Box | 1 | $ 118.80 | |
| Mouser Electronics | N/A | 1 | $ 131.66 | |
BQ24130 Series
Standalone 1-3 cell Buck battery charger for Li-ion and Super capacitor
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cells [Min] | Number of Cells [Max] | Fault Protection | Battery Pack Voltage | Mounting Type | Supplier Device Package | Current - Charging | Package / Case | Battery Chemistry | Voltage - Supply (Max) [Max] | Function | Utilized IC / Part | Primary Attributes | Primary Attributes [Min] | Primary Attributes [Max] | Primary Attributes | Type | Supplied Contents | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24130RHLR | 85 °C | -40 °C | 1 | 3 | Over Temperature, Over Voltage | 12.6 V | Surface Mount | 20-VQFN (3.5x4.5) | Constant - Programmable | 20-VFQFN Exposed Pad | Multi-Chemistry | 17 V | |||||||||
Texas Instruments BQ24130RHLT | 85 °C | -40 °C | 1 | 3 | Over Temperature, Over Voltage | 12.6 V | Surface Mount | 20-VQFN (3.5x4.5) | Constant - Programmable | 20-VFQFN Exposed Pad | Multi-Chemistry | 17 V | |||||||||
Texas Instruments BQ24130EVM | Battery Charger | BQ24130 | Cell Li-Ion/ Li-Pol | 4.5 V | 4 A, 17 V | 1, 2 Inputs, 3 | Power Management | Board(s) |
Description
General part information
BQ24130 Series
The bq24130 is an integrated host-controlled Li-ion and Li-polymer switch-mode battery charge controllers with two integrated N-channel power MOSFETs. It offers a constant-frequency synchronous PWM controller with high accuracy regulation of charge current and voltage. The fast charge and precharge current can be either hardwired with resistors or programmed by system power management microcontroller using a DAC or GPIOs. Battery remote sensing provides accurate charge voltage regulation.
The bq24130 monitors the battery pack temperature to allow charger only in a preset temperature window. The thermal regulation loop reduces the charge current to maintain the junction temperature of 120ºC during operation.
The bq24130 automatically enters a low-quiescent current sleep mode when the input voltage falls below the battery voltage. The bq24130 charges one, two or three cell (selected by CELL pin), supporting up to 4 A charge current. The bq24130 is available in a 20-pin, 3.5 x 4.5 mm2thin QFN package.
