PBW30F-15-CJN
ObsoleteCosel USA, Inc.
AC-DC REGULATED POWER SUPPLY MODULE, 2 OUTPUT, 30W, HYBRID, PACKAGE-7
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PBW30F-15-CJN
ObsoleteCosel USA, Inc.
AC-DC REGULATED POWER SUPPLY MODULE, 2 OUTPUT, 30W, HYBRID, PACKAGE-7
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PBW30F-15-CJN |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 1 A |
| Current - Output 2 | 1.4 A |
| Efficiency | 79 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 4.06 " |
| Size / Dimension [x] | 103.1 mm |
| Size / Dimension [y] | 31 mm |
| Size / Dimension [y] | 1.22 " |
| Size / Dimension [z] | 78 mm |
| Size / Dimension [z] | 3.07 in |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
PBW30F Series
| Part | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Applications | Minimum Load Required | Voltage - Isolation | Efficiency | Voltage - Output 1 | Number of Outputs | Mounting Type | Voltage - Output 2 | Type | Current - Output 2 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cosel USA, Inc. | 1.3 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 81 % | 12 V | 2 | Chassis Mount | -12 V | Open Frame | 1.7 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in | |||
Cosel USA, Inc. | 1.3 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 81 % | 12 V | 2 | Chassis Mount | -12 V | Open Frame | 1.7 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in | |||
Cosel USA, Inc. | 1 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 79 % | 15 V | 2 | Chassis Mount | -15 V | Enclosed | 1.4 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in | |||
Cosel USA, Inc. | 1 A | CE cURus TUV | ITE (Commercial) | 79 % | 15 V | 2 | Chassis Mount | -15 V | Enclosed | 1.4 A | DC Input Capable Universal Input | 30 W | ||||||||||
Cosel USA, Inc. | 1.5 A | CE cURus TUV | ITE (Commercial) | 75 % | 5 V | 2 | Chassis Mount | -5 V | Enclosed | 2 A | DC Input Capable Universal Input | 30 W | ||||||||||
Cosel USA, Inc. | 1.5 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 75 % | 5 V | 2 | Chassis Mount | -5 V | Open Frame | 2 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in | |||
Cosel USA, Inc. | 1.5 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 75 % | 5 V | 2 | Chassis Mount | -5 V | Open Frame | 2 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in | |||
Cosel USA, Inc. | 1 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 79 % | 15 V | 2 | Chassis Mount | -15 V | Enclosed | 1.4 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in | |||
Cosel USA, Inc. | 1 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 79 % | 15 V | 2 | Chassis Mount | -15 V | Enclosed | 1.4 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in | |||
Cosel USA, Inc. | 1 A | -10 °C | 71 °C | CE cURus TUV | ITE (Commercial) | 3000 V | 79 % | 15 V | 2 | Chassis Mount | -15 V | Open Frame | 1.4 A | 78 mm | 4.06 " | 31 mm | 103.1 mm | 1.22 " | 3.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PBW30F Series

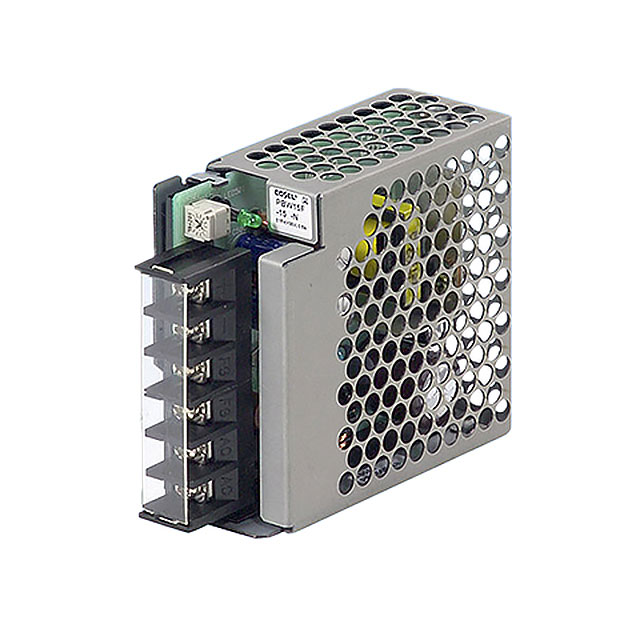

Enclosed AC DC Converters 2 Output 15V -15V 85 ~ 264 VAC Input
