PBW30F-12-EJ

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER +/-12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PBW30F-12-EJ

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER +/-12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBW30F-12-EJ

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	1.3 A
Current - Output 2	1.7 A
Efficiency	81 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	4.06 "
Size / Dimension [x]	103.1 mm
Size / Dimension [y]	31 mm
Size / Dimension [y]	1.22 "
Size / Dimension [z]	78 mm
Size / Dimension [z]	3.07 in
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

PBW30F Series

Part	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Applications	Voltage - Isolation	Efficiency	Voltage - Output 1	Number of Outputs	Mounting Type	Voltage - Output 2	Type	Current - Output 2	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Power (Watts)
Cosel USA, Inc. PBW30F-12-EJ	1.3 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	81 %	12 V	2	Chassis Mount	-12 V	Open Frame	1.7 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in
Cosel USA, Inc. PBW30F-12-C	1.3 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	81 %	12 V	2	Chassis Mount	-12 V	Open Frame	1.7 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in
Cosel USA, Inc. PBW30F-15-CJN	1 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	79 %	15 V	2	Chassis Mount	-15 V	Enclosed	1.4 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in
Cosel USA, Inc. PBW30F-15-N	1 A			CE cURus TUV	ITE (Commercial)		79 %	15 V	2	Chassis Mount	-15 V	Enclosed	1.4 A							DC Input Capable Universal Input	30 W
Cosel USA, Inc. PBW30F-5	1.5 A			CE cURus TUV	ITE (Commercial)		75 %	5 V	2	Chassis Mount	-5 V	Enclosed	2 A							DC Input Capable Universal Input	30 W
Cosel USA, Inc. PBW30F-5-T	1.5 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	75 %	5 V	2	Chassis Mount	-5 V	Open Frame	2 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in
Cosel USA, Inc. PBW30F-5-N1	1.5 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	75 %	5 V	2	Chassis Mount	-5 V	Open Frame	2 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in
Cosel USA, Inc. PBW30F-15-VN	1 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	79 %	15 V	2	Chassis Mount	-15 V	Enclosed	1.4 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in
Cosel USA, Inc. PBW30F-15-EN	1 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	79 %	15 V	2	Chassis Mount	-15 V	Enclosed	1.4 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in
Cosel USA, Inc. PBW30F-15-E	1 A	-10 °C	71 °C	CE cURus TUV	ITE (Commercial)	3000 V	79 %	15 V	2	Chassis Mount	-15 V	Open Frame	1.4 A	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PBW30F Series

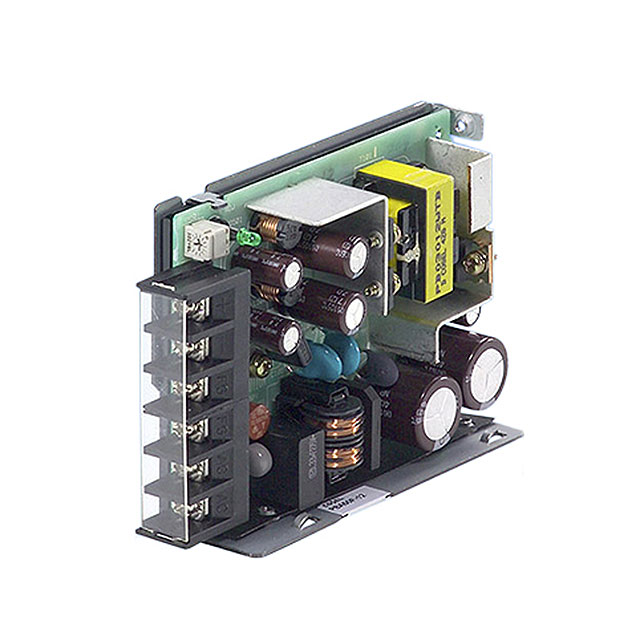

Open Frame AC DC Converters 2 Output 12V -12V 85 ~ 264 VAC Input
